Toyota HiLux Prado 1GD-FTV 2.8L Cylinder Head Kit

Complete 1GD-FTV Cylinder Head Kit — Ready to Install

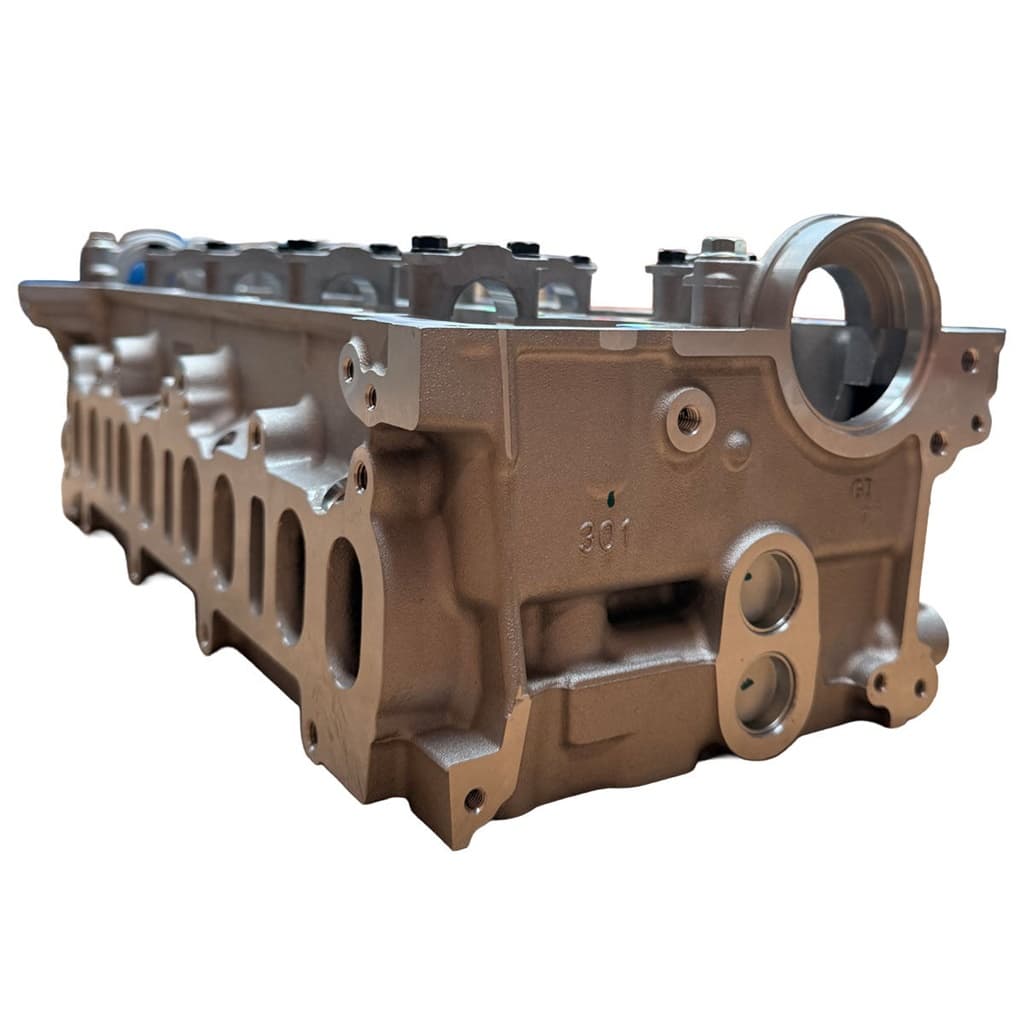

Brand-new assembled 1GD-FTV cylinder head kit for Toyota HiLux, HiAce, Prado, Fortuner and Granvia with 2.8L turbo diesel engine. Professionally assembled, valve-to-seat compression tested, and supplied with everything needed for installation — except camshafts, rocker arms and lifters, which transfer from your original head.

Fits: Toyota HiLux (2015–2025), HiAce (2017–2025), Prado (2015–2025), Fortuner (2015–2025), Granvia (2019–2025) — Engine code 1GD-FTV, 2.8L turbo diesel.

Important: Camshafts, rocker arms and lifters are not included — transfer your original components from the old head to the new one during installation.

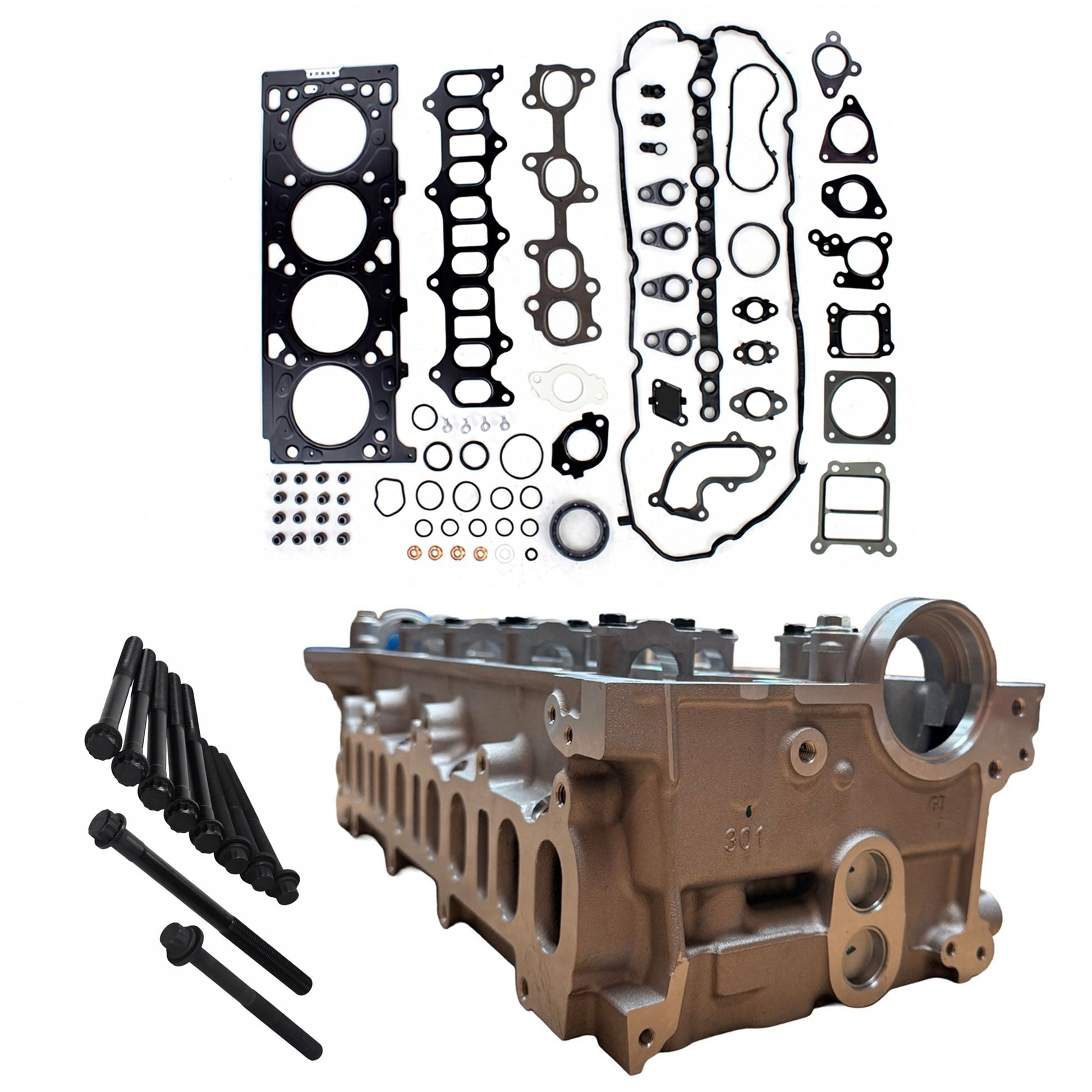

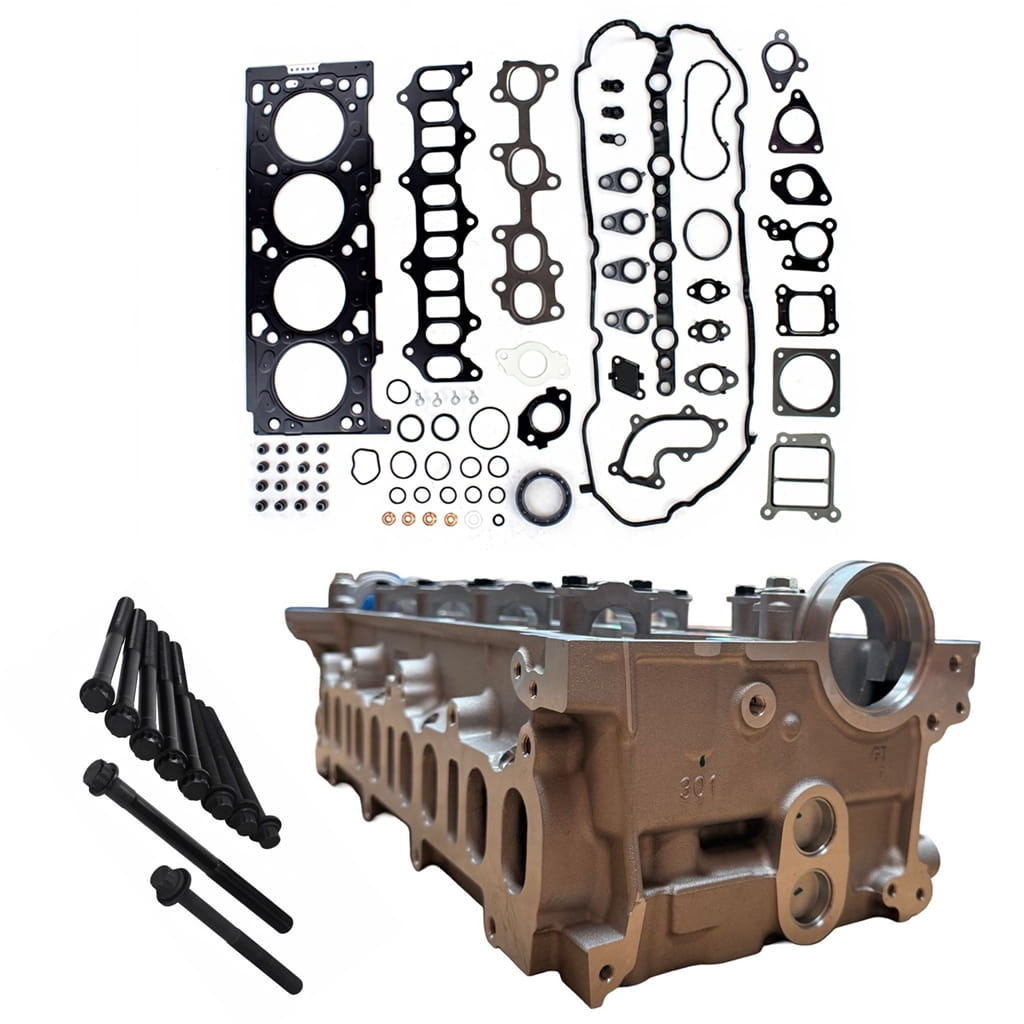

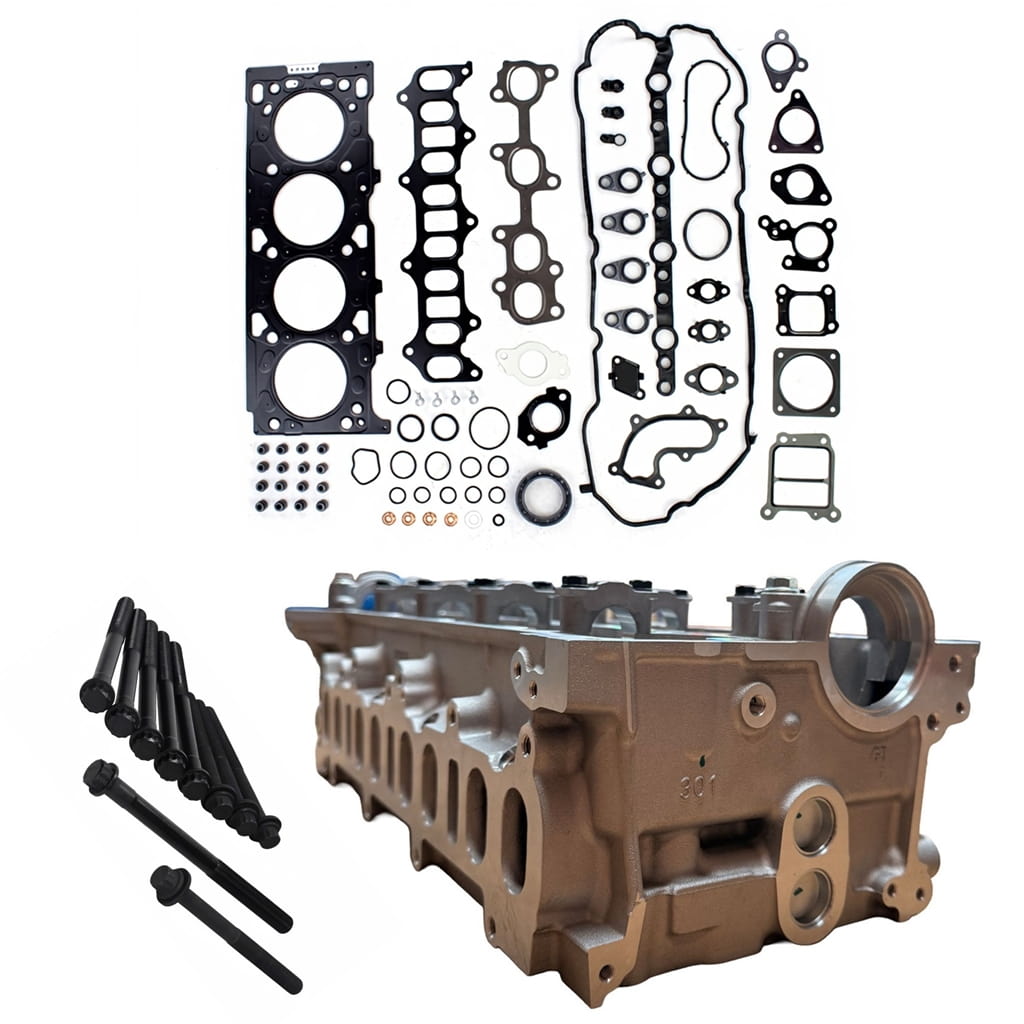

What's Included:

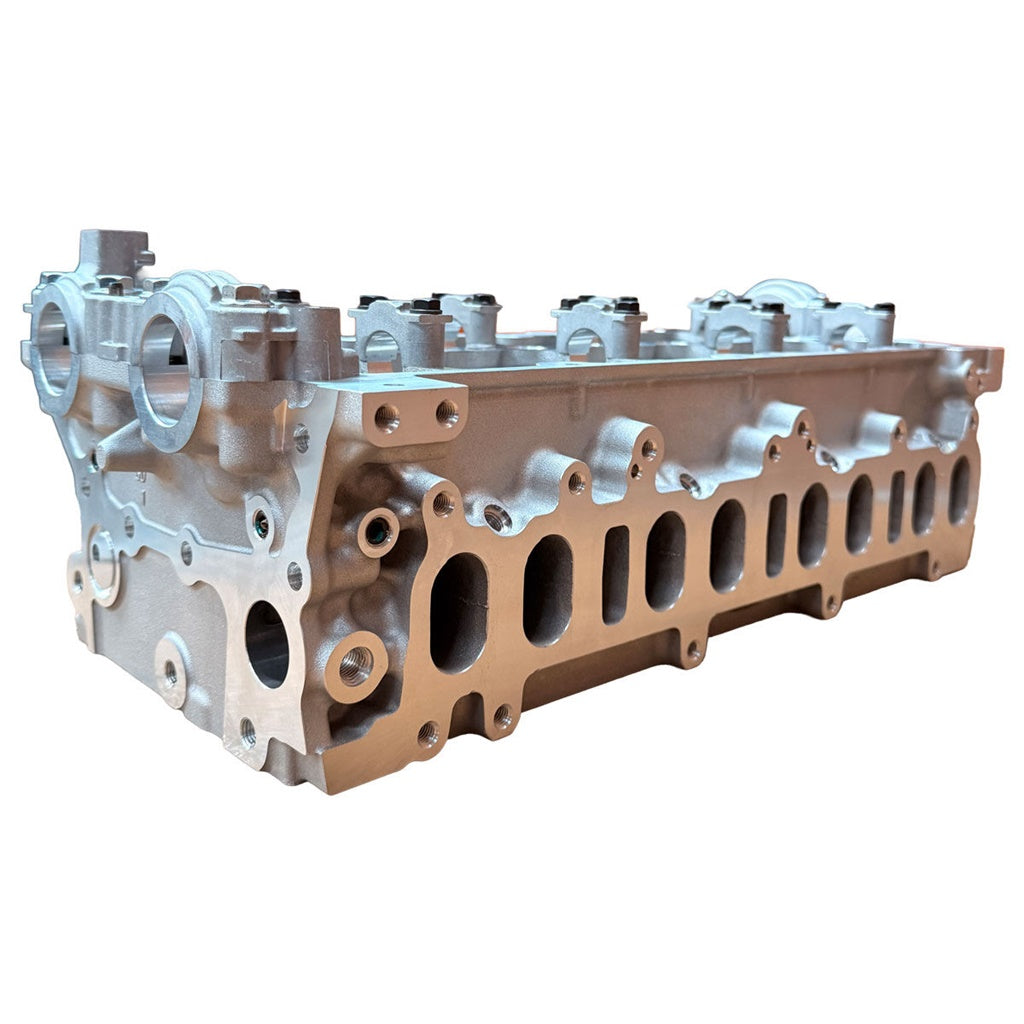

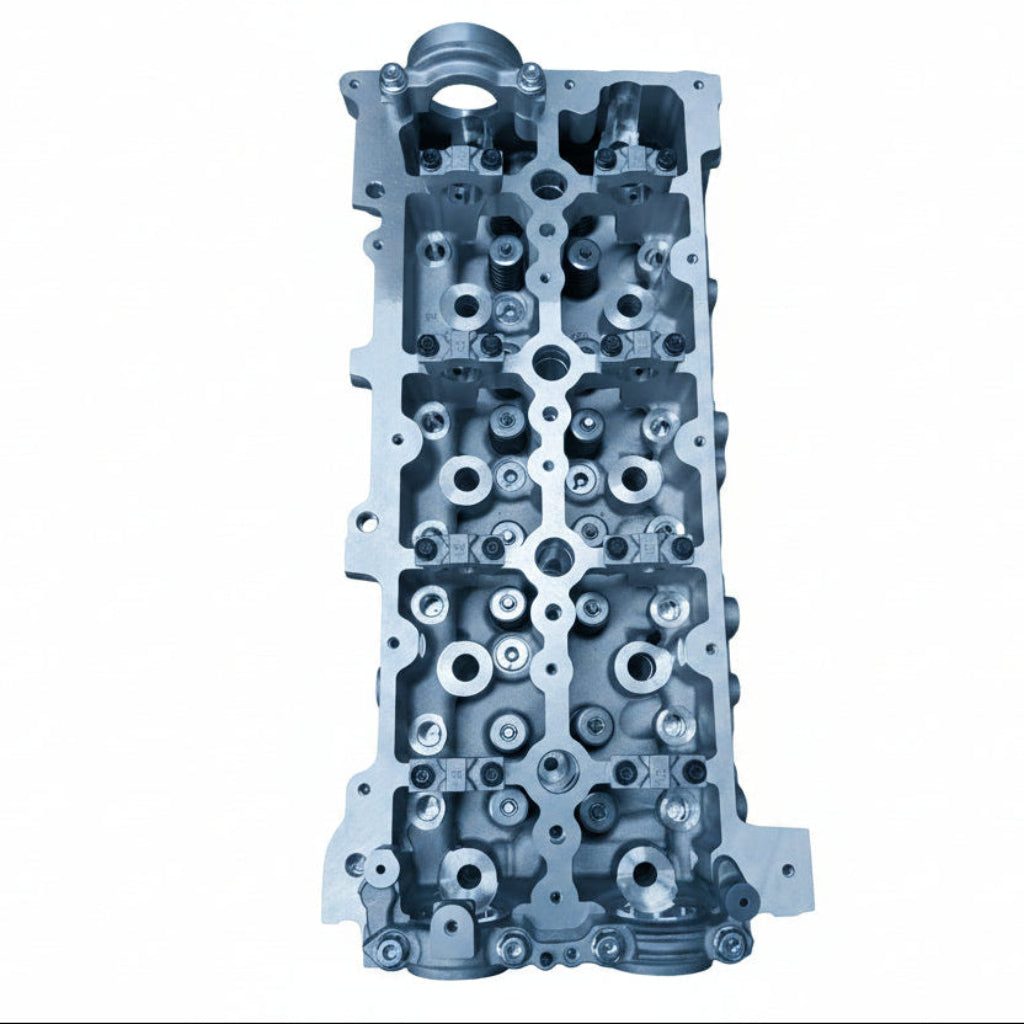

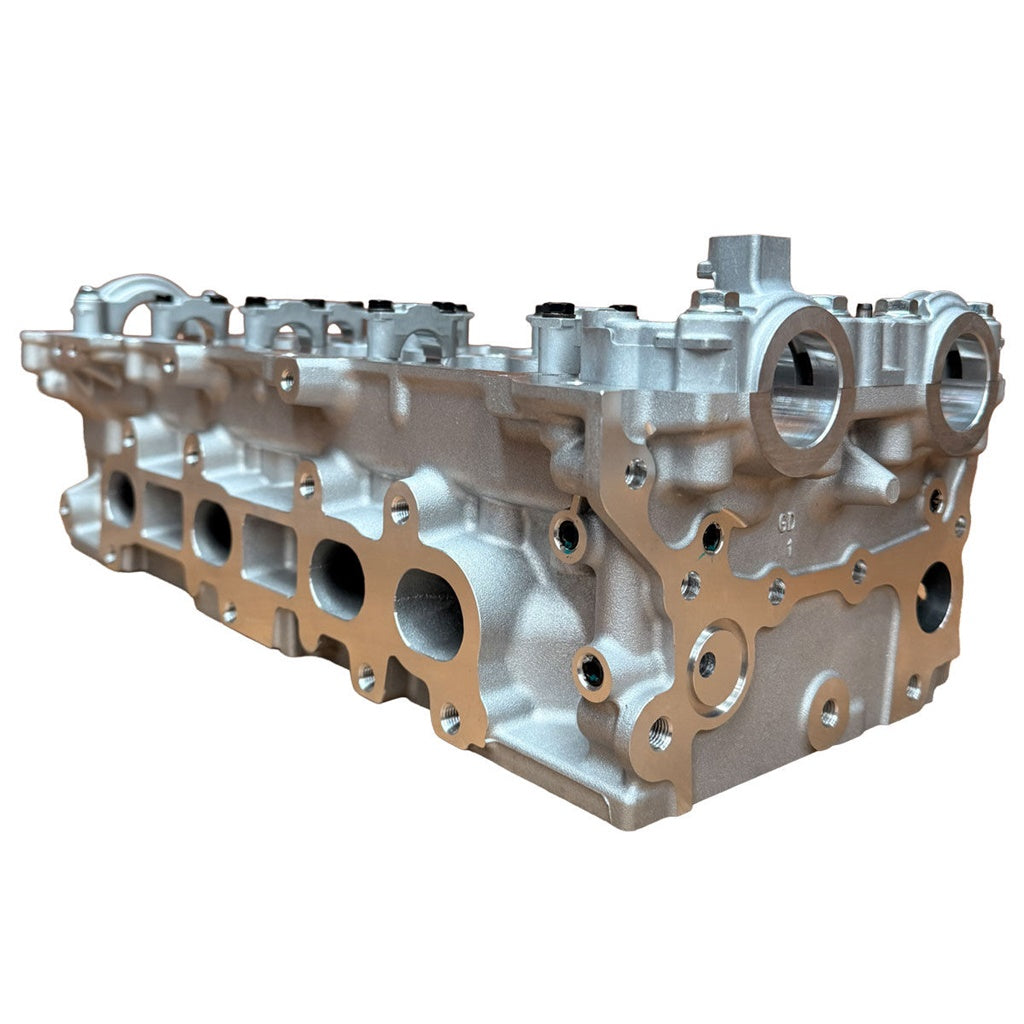

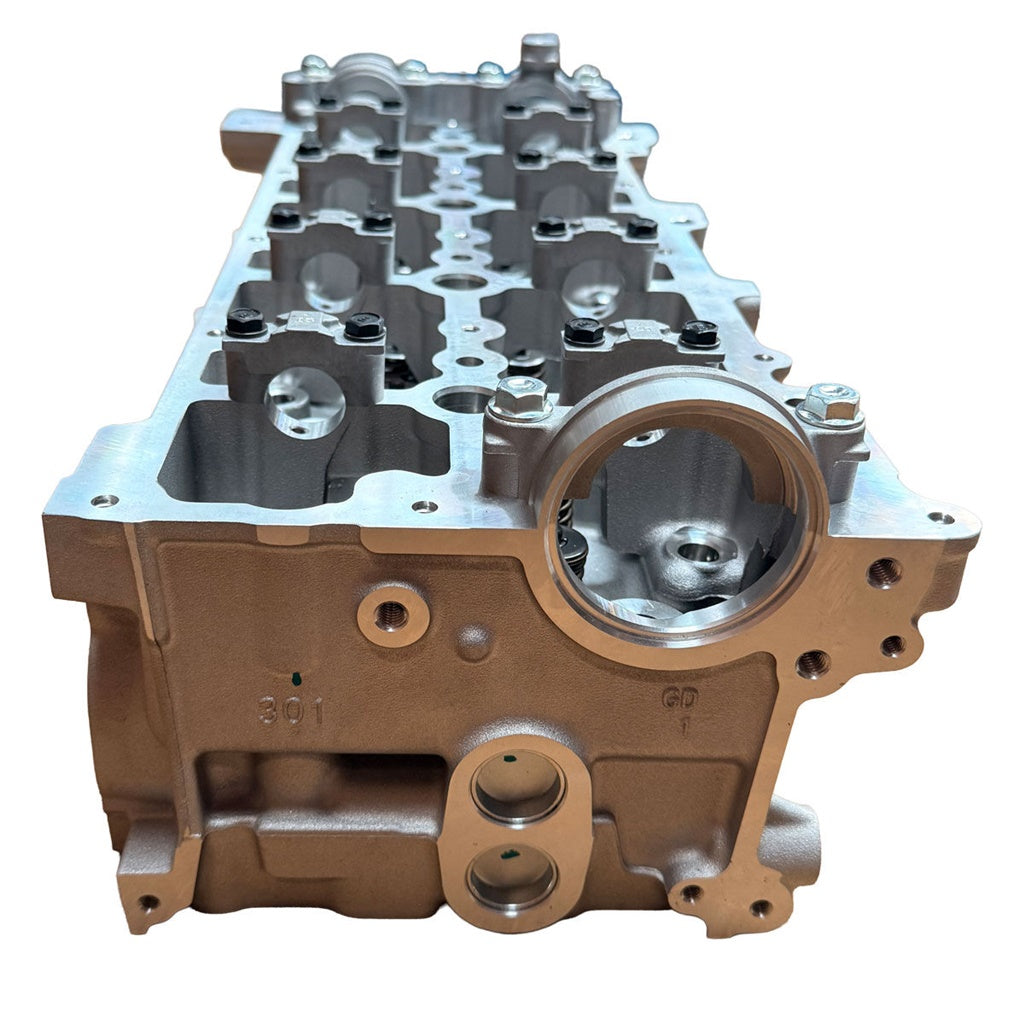

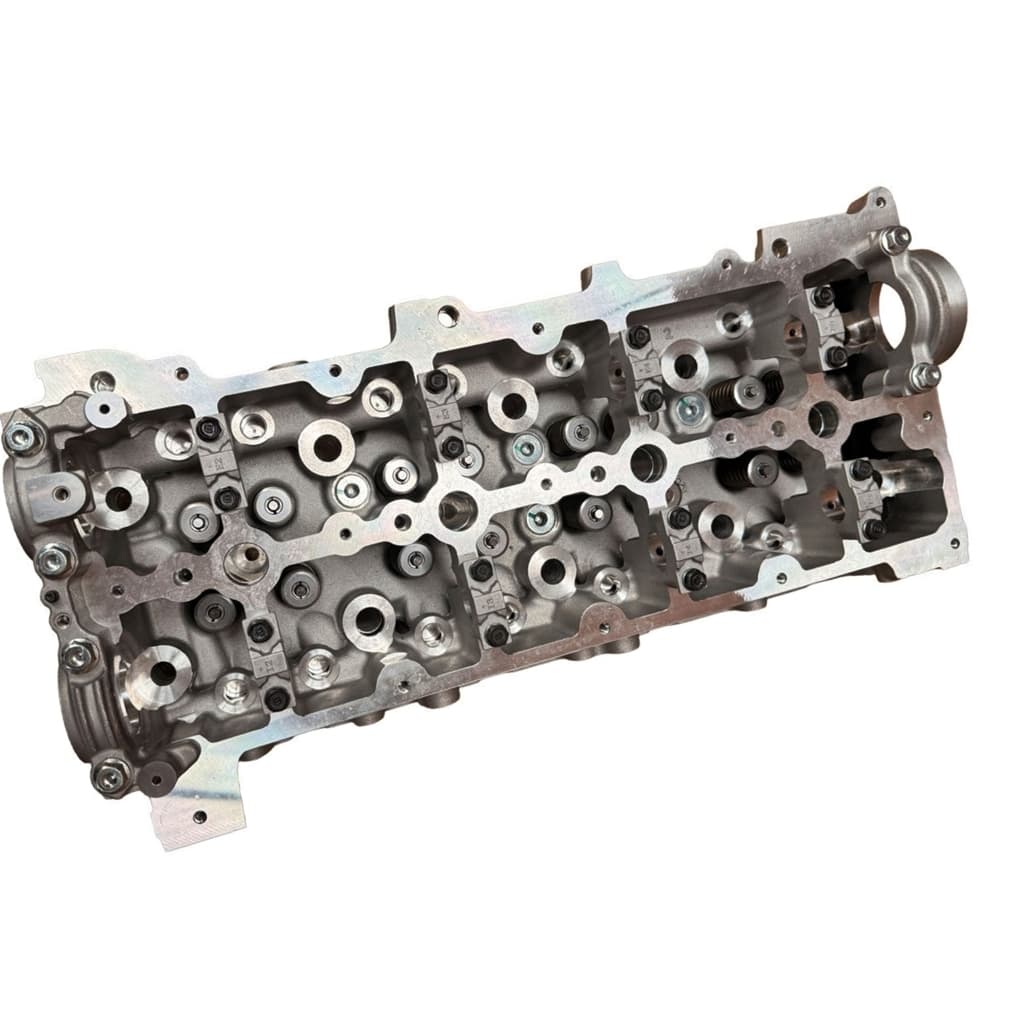

• Brand new assembled cylinder head casting
• Valves, springs, retainers & valve stem seals fitted

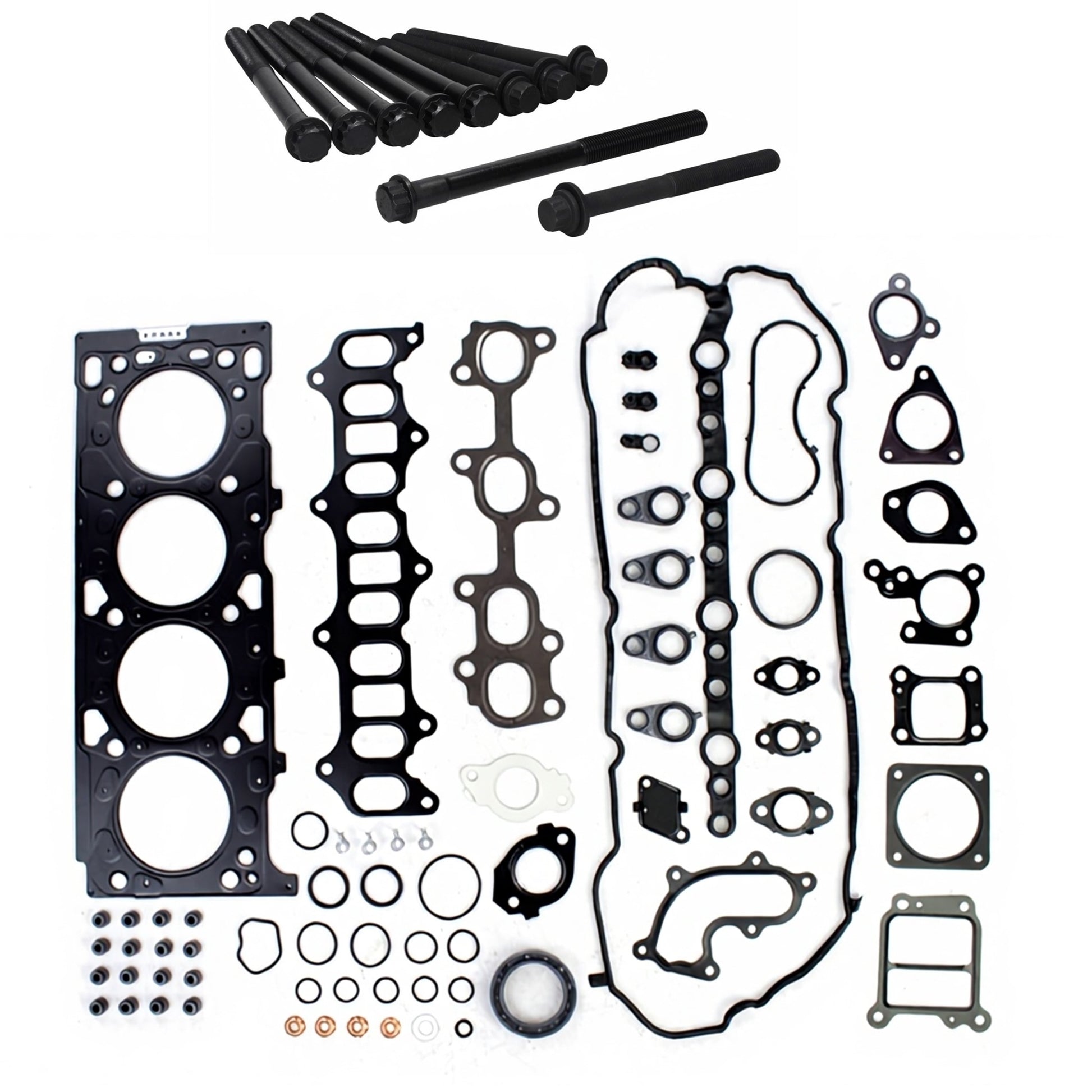

• Multi-layer steel (MLS) head gasket — thickest specification
• Complete VRS gasket set with all seals & O-rings

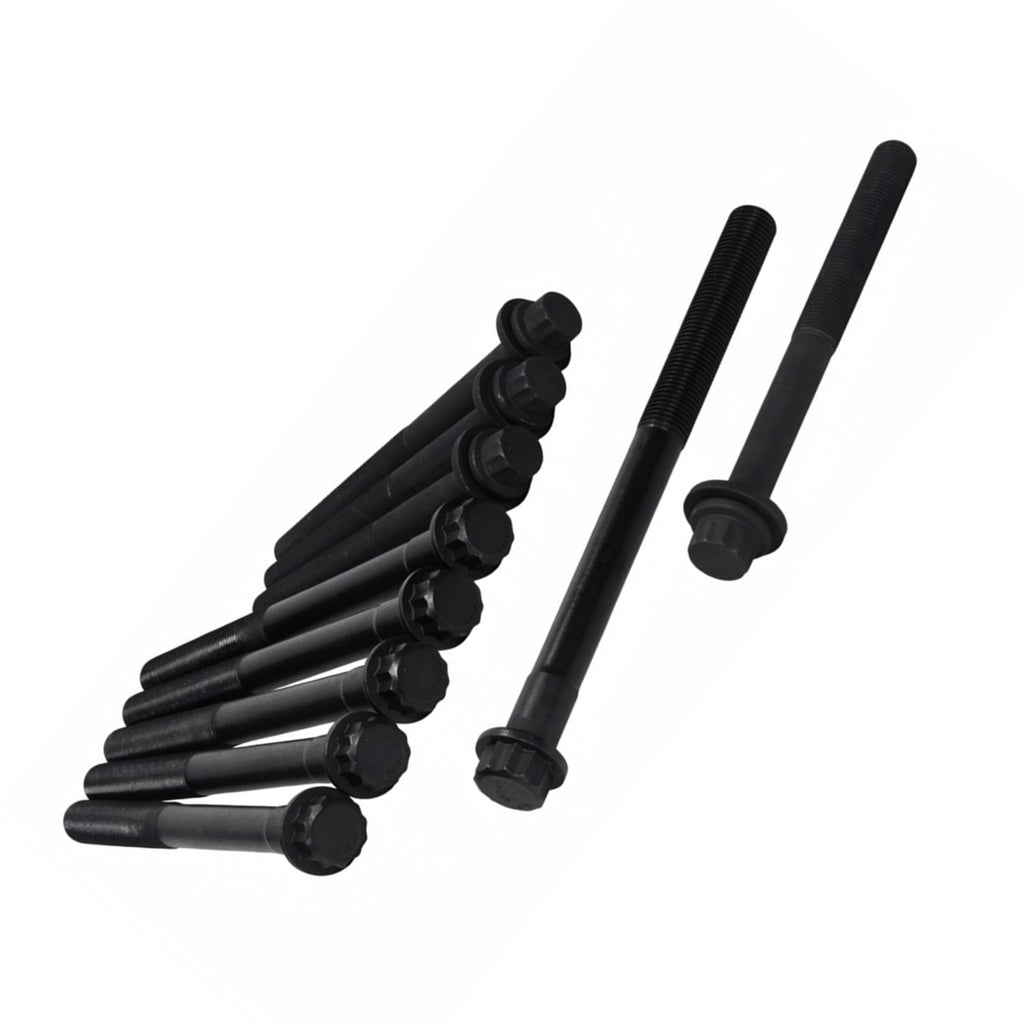

• Torque-to-yield (TTY) stretch bolts (single-use)
• ✓ Free Delivery: Available to most Australian addresses — Perth pickup also available

Not Included — Reuse Originals:

• Camshafts (inlet and exhaust)
• Rocker arm assembly
• Lifters / tappets

Key Specifications:

• Engine Code: 1GD-FTV — 2.8L turbo diesel
• Valve configuration: 16-valve DOHC
• Head gasket: Multi-layer steel (MLS) — thickest specification
• Bolt type: Torque-to-yield (TTY) stretch bolts (single-use)
• Camshafts/rockers/lifters: Not included — reuse originals from old head
• Quality: 100% quality inspected, valve-to-seat compression tested, head face checked and refaced if necessary
• ✓ Warranty: 12 months

Compatibility Guide

Guide only — please contact us if you are unsure.

• 2015–2025: Toyota HiLux with 2.8L turbo diesel, engine code 1GD-FTV
• 2017–2025: Toyota HiAce with 2.8L turbo diesel, engine code 1GD-FTV
• 2015–2025: Toyota Prado with 2.8L turbo diesel, engine code 1GD-FTV
• 2015–2025: Toyota Fortuner with 2.8L turbo diesel, engine code 1GD-FTV
• 2019–2025: Toyota Granvia with 2.8L turbo diesel, engine code 1GD-FTV

Order online or by phone. Pickup available in Perth (Midland) or fast dispatch from Melbourne.

Frequently Asked Questions

Do I need to swap my camshafts across?
Yes — camshafts, rocker arms and lifters are not included. Transfer your original components from the old head to the new one as part of the installation process.

Are the head bolts reusable?
No — the 1GD-FTV uses torque-to-yield (TTY) stretch bolts which are single-use only. New bolts are included in this kit.

Just need the head without gaskets and bolts?
We also offer the 1GD-FTV Assembled Cylinder Head on its own for $1,690.00 — ideal if you already have a gasket set and bolts on hand.
