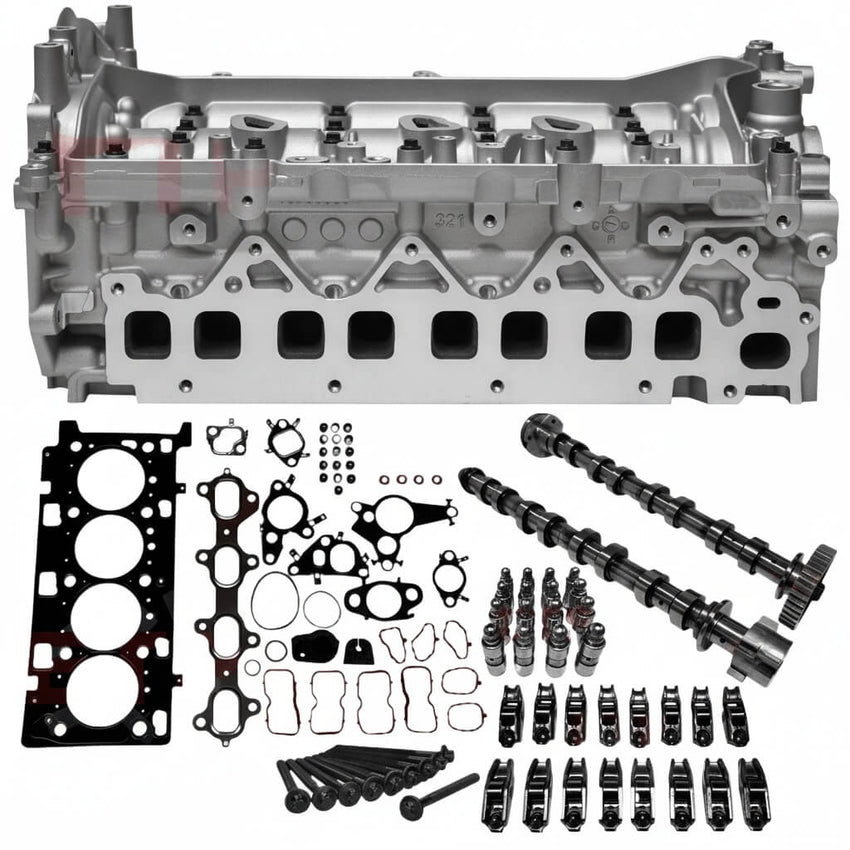

Nissan Navara NP300 YS23 Cylinder Head Complete

Complete cylinder head assembly for Nissan Navara NP300 D23 with YS23 2.3L twin-turbo diesel engines. Ready to install with valves and springs already fitted. Includes camshafts, rocker arms, hydraulic lifters, and a complete gasket set with MLS head gasket and high-tensile stretch bolts. One cylinder head per vehicle.

Fitment

Nissan: Navara NP300 D23 (2.3L YS23 twin-turbo diesel, 2015-2021)

Engine codes: YS23DDTt (2.3L twin-turbo diesel)

What's Included

• Assembled cylinder head with valves, springs, guides, and seals fitted
• Inlet and exhaust camshafts (supplied separately, not fitted)
• Rocker arms (supplied separately, not fitted)
• Hydraulic lifters (supplied separately, not fitted)
• Multi-layer steel (MLS) cylinder head gasket (thickest specification for universal compatibility)
• High-tensile stretch bolts (torque-to-yield, single-use)

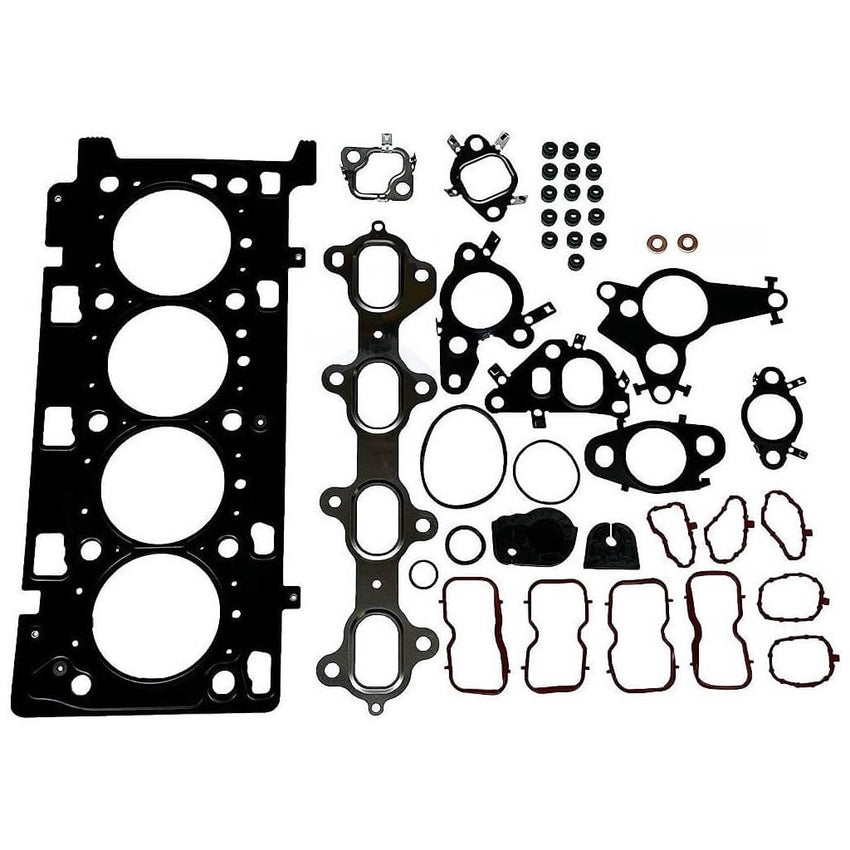

• Complete head gasket set with all seals and O-rings
• Head bolt torque, tension, and sequence specifications included
• Pressure-tested and ready to install

Installation Notes

• Important: Camshafts, rocker arms and hydraulic lifters are supplied separately (not fitted) as they must be installed after the cylinder head is bolted to the engine block.
• Install the cylinder head to the block following the factory torque sequence using the new head bolts included.
• Install camshafts, rocker arms and hydraulic lifters after head installation.

Specifications

• Engine: 2.3L YS23DDTt twin-turbo diesel
• Valve configuration: 16-valve DOHC
• Lifter type: Hydraulic lifters
• Material: Aluminium with precision-machined surfaces
• Head gasket material: Multi-layer steel (MLS) - thickest specification
• Bolt type: Torque-to-yield (TTY) stretch bolts, single-use

Shipping

Ships Australia-wide. In-stock items ship the same or next business day. Local Perth metro stock available for fast dispatch.
