Nissan Navara NP300 D23 YS23 2.3L Cylinder Head Complete
Nissan Navara NP300 D23 YS23 2.3L Cylinder Head Complete
Couldn't load pickup availability

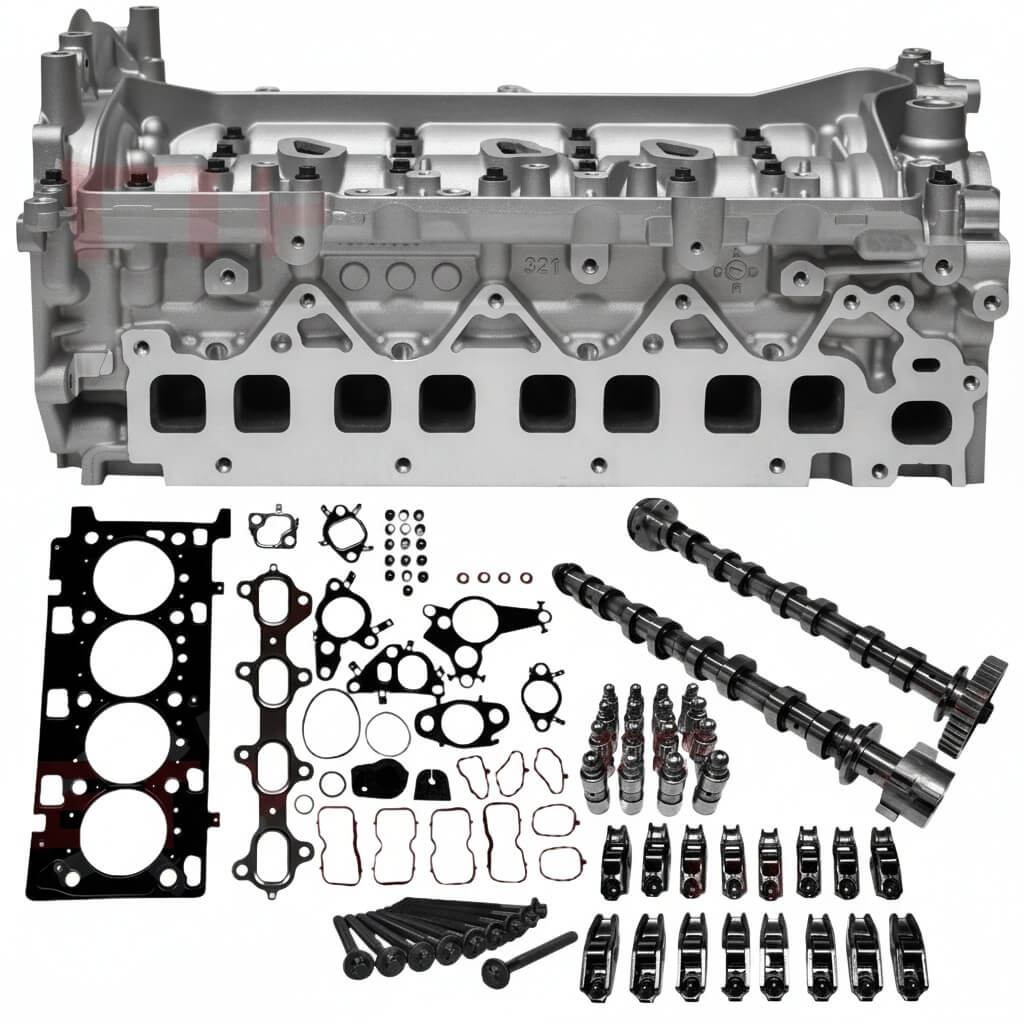

Complete YS23 Cylinder Head Kit — Ready to Install
Brand new complete YS23 cylinder head kit for Nissan Navara NP300 D23 with 2.3L turbo diesel engine. Suits both single turbo (YS23DDT) and twin turbo (YS23DDTT) variants. Valves, springs, retainers and seals fitted. Twin camshafts, rocker arms and hydraulic lifters supplied. MLS head gasket set and TTY head bolts included. Professionally assembled, valve-to-seat compression tested, and head face checked and refaced if necessary.
Fits: Nissan Navara NP300 D23 (2015–2021) — Engine code YS23DDT, YS23DDTT, 2.3L turbo diesel and twin turbo diesel
Important: Twin camshafts, rocker arms and hydraulic lifters are supplied loose — not pre-installed. These components must be fitted after the head is bolted to the block, as per standard YS23 assembly procedure. If your original camshafts and valve train are in good condition, our YS23 Assembled Head may suit you at a lower price.
What's Included:
- Brand new assembled cylinder head casting
- Valves, springs, retainers & valve stem seals fitted

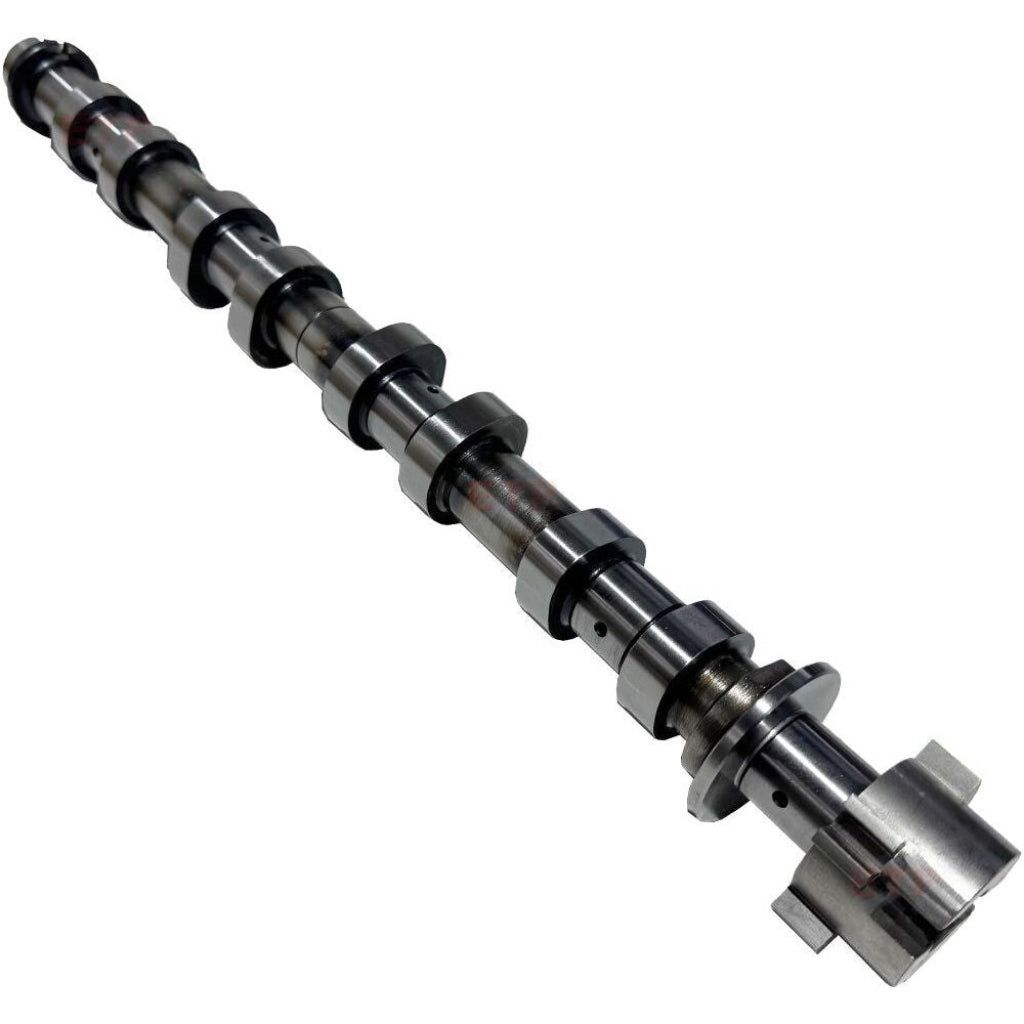

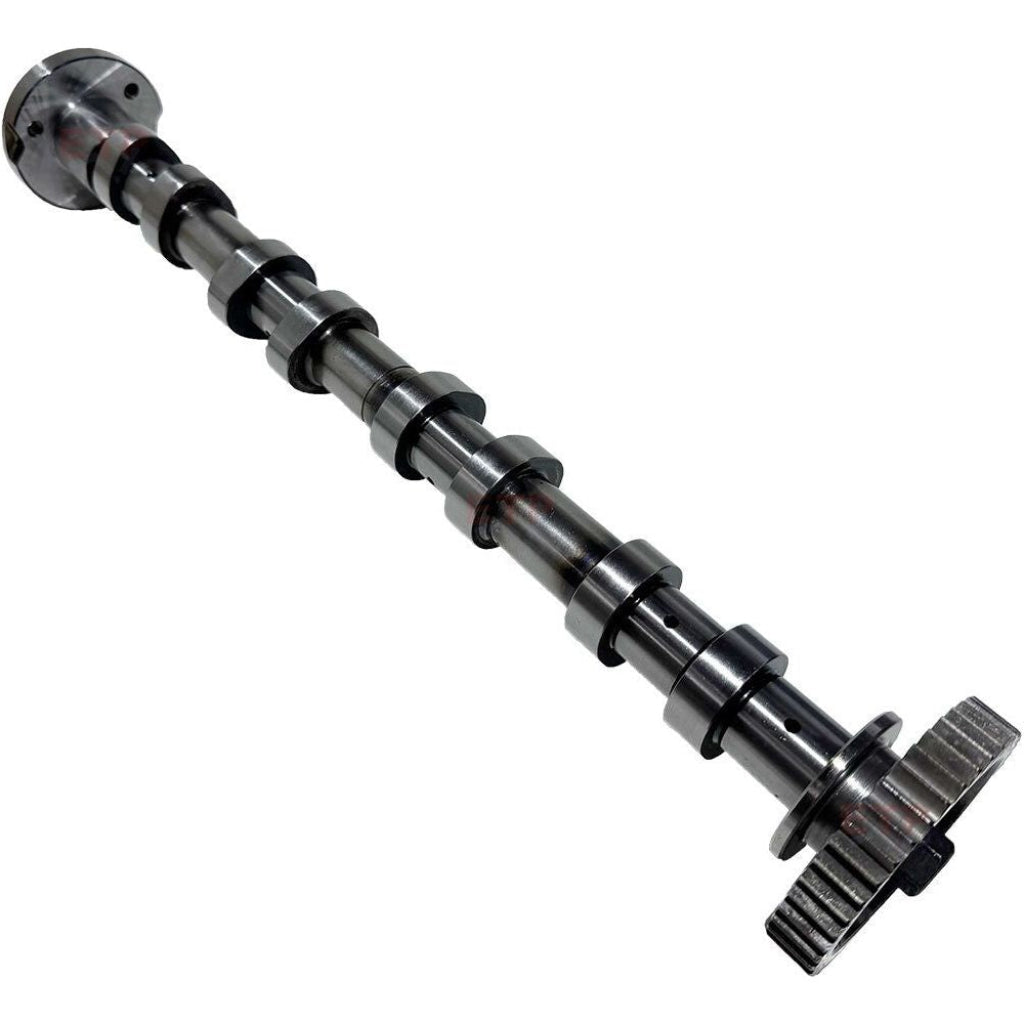

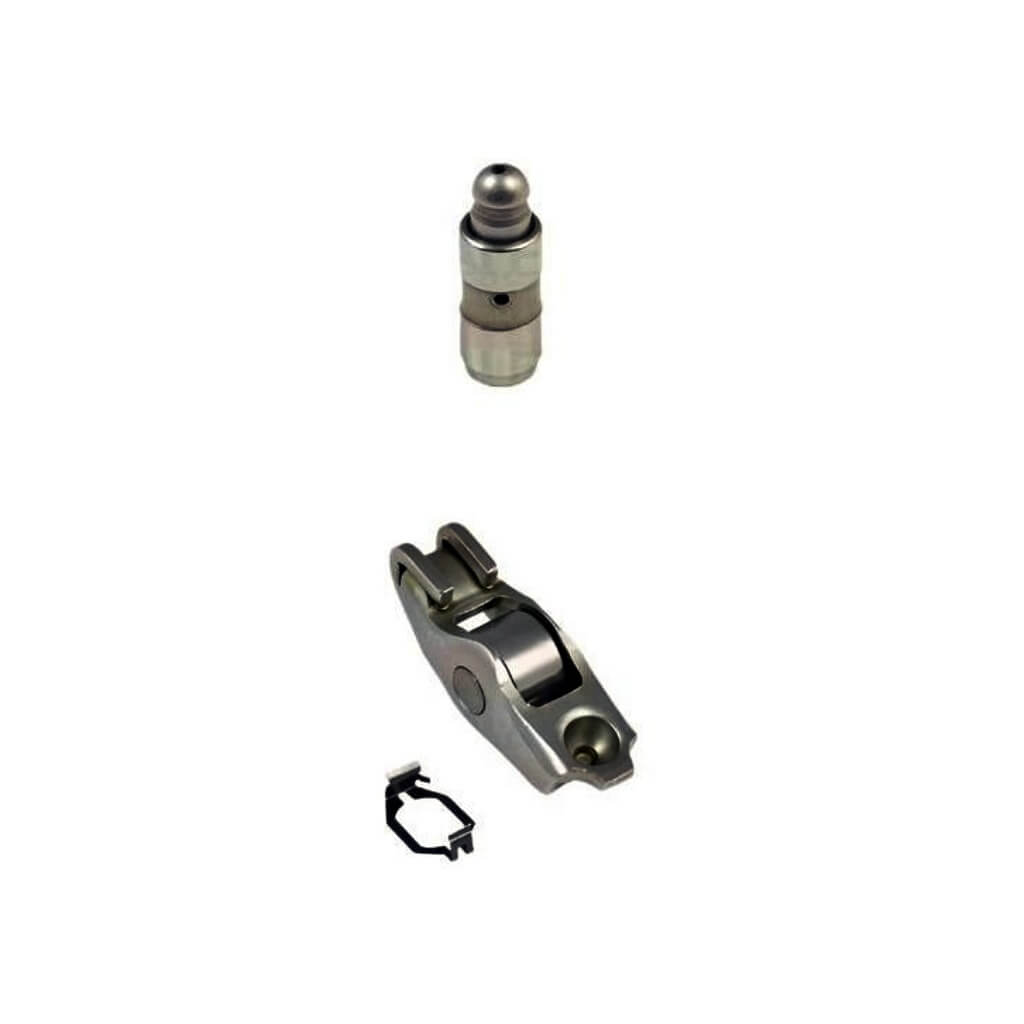

- Twin camshafts, rocker arms & hydraulic lifters (supplied loose)
- MLS head gasket — thickest specification

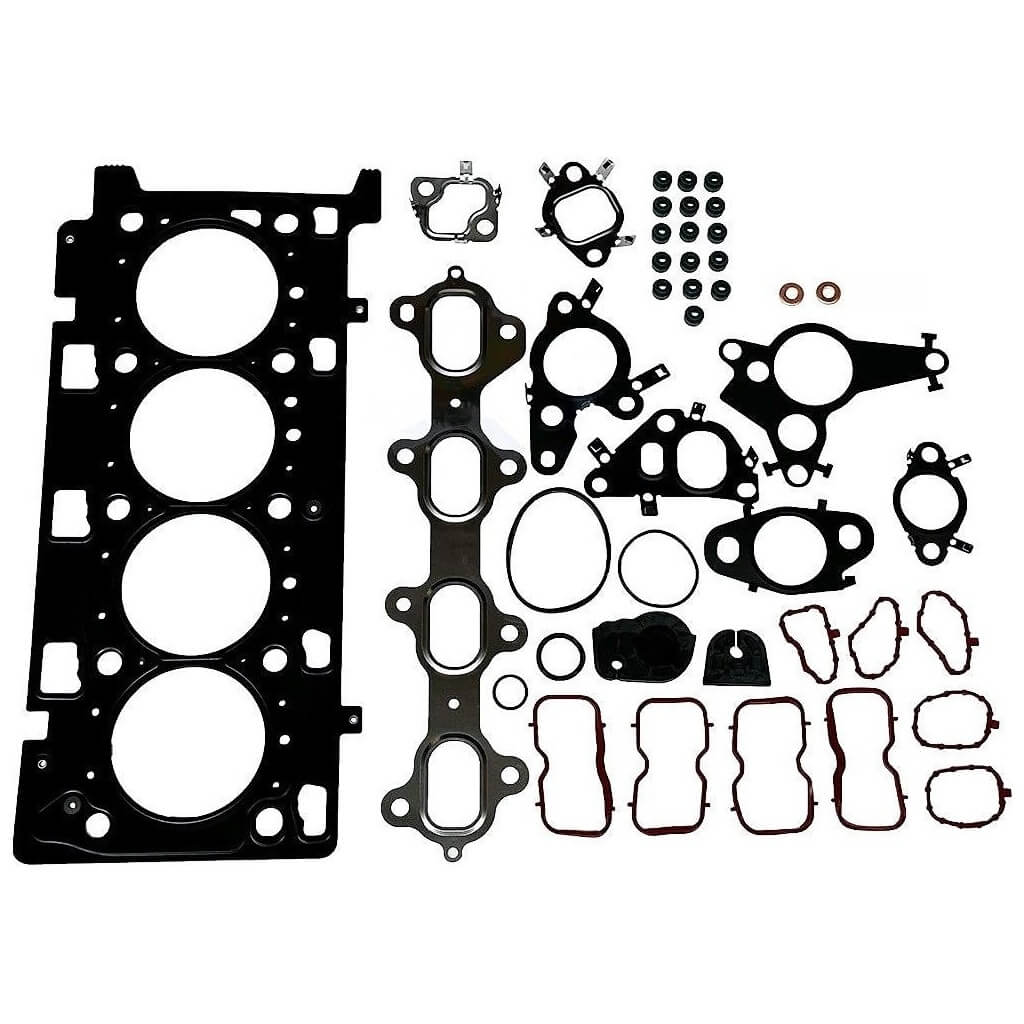

- Complete VRS gasket set with all seals & O-rings
- Torque-to-yield (TTY) stretch bolts (single-use)
- ✓ Free Delivery: Available to most Australian addresses — Perth pickup also available
Key Specifications:
- Engine Code: YS23DDT / YS23DDTT — 2.3L turbo diesel & twin turbo diesel
- Valve configuration: 16-valve DOHC
- Head gasket: Multi-layer steel (MLS) — thickest specification
- Bolt type: Torque-to-yield (TTY) stretch bolts (single-use)
- Camshafts/rockers/lifters: Included loose — fitted after head installation
- Quality: 100% quality inspected, valve-to-seat compression tested, head face checked and refaced if necessary
- ✓ Warranty: 12 months
Compatibility Guide
Guide only — please contact us if you are unsure.
- 2015–2021: Nissan Navara NP300 D23 with 2.3L turbo diesel, engine code YS23DDT
- 2015–2021: Nissan Navara NP300 D23 with 2.3L twin turbo diesel, engine code YS23DDTT
Everything you need in one kit — the complete solution for NP300 owners who need a full valve train replacement alongside the head.
Order online or by phone. Pickup available in Perth (Midland) or fast dispatch from Melbourne.
Further Reading: YS23 Cylinder Head Failure — Symptoms, Causes & Replacement Options
Frequently Asked Questions
Why are the camshafts supplied loose and not pre-installed?
On the YS23 engine, the camshafts, rocker arms and hydraulic lifters must be installed after the head is bolted to the block — this is standard assembly procedure for this engine. They are supplied with the kit ready to fit in the correct sequence.
Does this suit both the single turbo and twin turbo NP300?
Yes — this head suits both the YS23DDT (single turbo) and YS23DDTT (twin turbo) variants of the 2.3L engine.
Related products: YS23 Assembled Head — without camshafts | YS23 Head Gasket Set with Bolts | Browse all Nissan Navara NP300 YS23 Parts
Fitment & Product FAQ
Are the cylinder heads supplied assembled?
Most are supplied assembled, with the camshaft, valves, springs and seals already fitted so they are ready for installation. Some applications require the original camshaft and rocker gear to be transferred across. Confirm the details in the ‘What’s Included’ section for the product you are viewing.
What will I receive with my order?
The contents vary by application. Most complete cylinder-head kits include the assembled head, a VRS gasket set and new head bolts. Some products require reuse of the original camshaft and rockers. For engines using an MLS gasket, we supply the thickest available specification. Gasket-set-only products include the head gasket, manifold gaskets, valve stem seals, rocker cover gasket, head bolts and required O-rings. Check the product’s ‘What’s Included’ section for the exact contents.
What warranty is included?
Every cylinder head includes a 12-month warranty against manufacturing defects. We carefully select our heads and stand behind the quality supplied.
How can I confirm it fits my vehicle?
Use the ‘Fits’ section to check the compatible make, model, year and engine code. If you are still unsure, send us your VIN before ordering and we can confirm the application.
How quickly will my order arrive?
Orders are dispatched from Perth or Melbourne. Most deliveries arrive within 2–5 business days, with express delivery available at checkout.
Does the head need machining before installation?
No. Our cylinder heads are manufactured to OEM specifications and are supplied ready to fit, so machining should not be required before installation.
