Cylinder Head Supply
Nissan Navara NP300 D23 YS23 2.3L Cylinder Head Assembled
Nissan Navara NP300 D23 YS23 2.3L Cylinder Head Assembled
Couldn't load pickup availability

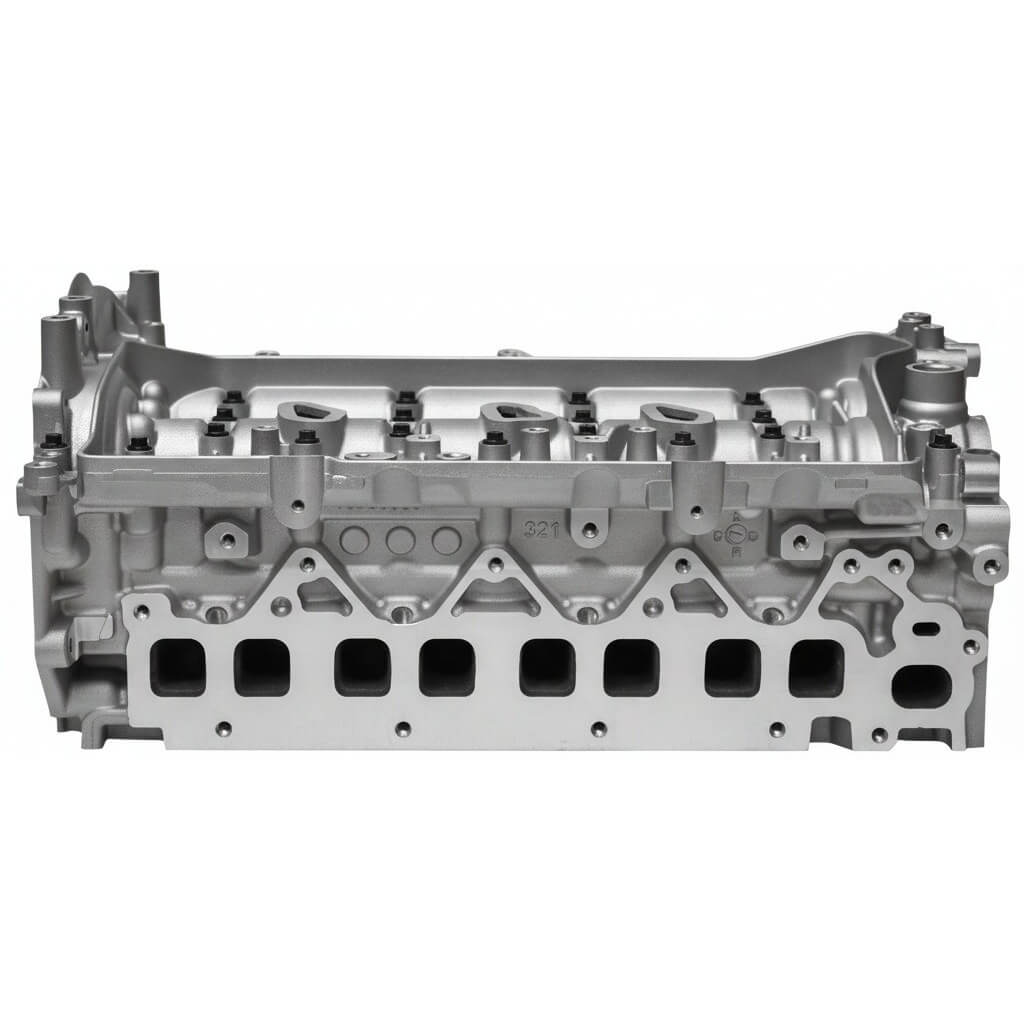

YS23 Assembled Cylinder Head — Ready to Install
Brand new assembled YS23 cylinder head for Nissan Navara NP300 D23 with 2.3L turbo diesel engine. Suits both single turbo (YS23DDT) and twin turbo (YS23DDTT) variants. Valves, springs, retainers and seals fitted. MLS head gasket set and TTY head bolts included. Professionally assembled, valve-to-seat compression tested, and head face checked and refaced if necessary.
Fits: Nissan Navara NP300 D23 (2015–2021) — Engine code YS23DDT, YS23DDTT, 2.3L turbo diesel and twin turbo diesel.

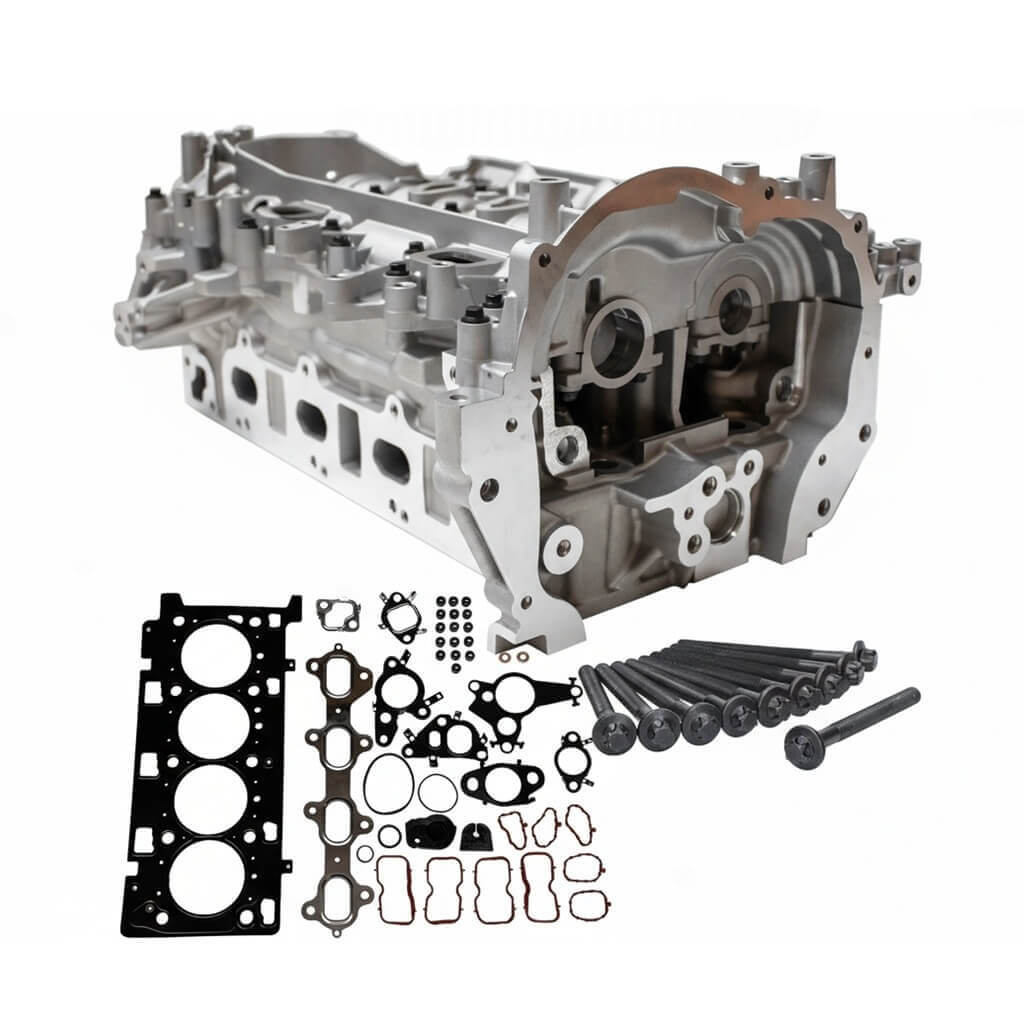

Important: Camshafts, rocker arms and hydraulic lifters are not included in this listing — reuse your originals from the old head. If you require camshafts, rockers and lifters supplied with the head, see our YS23 Complete Cylinder Head.
What's Included:
- Brand new assembled cylinder head casting
- Valves, springs, retainers & valve stem seals fitted
- MLS head gasket — thickest specification

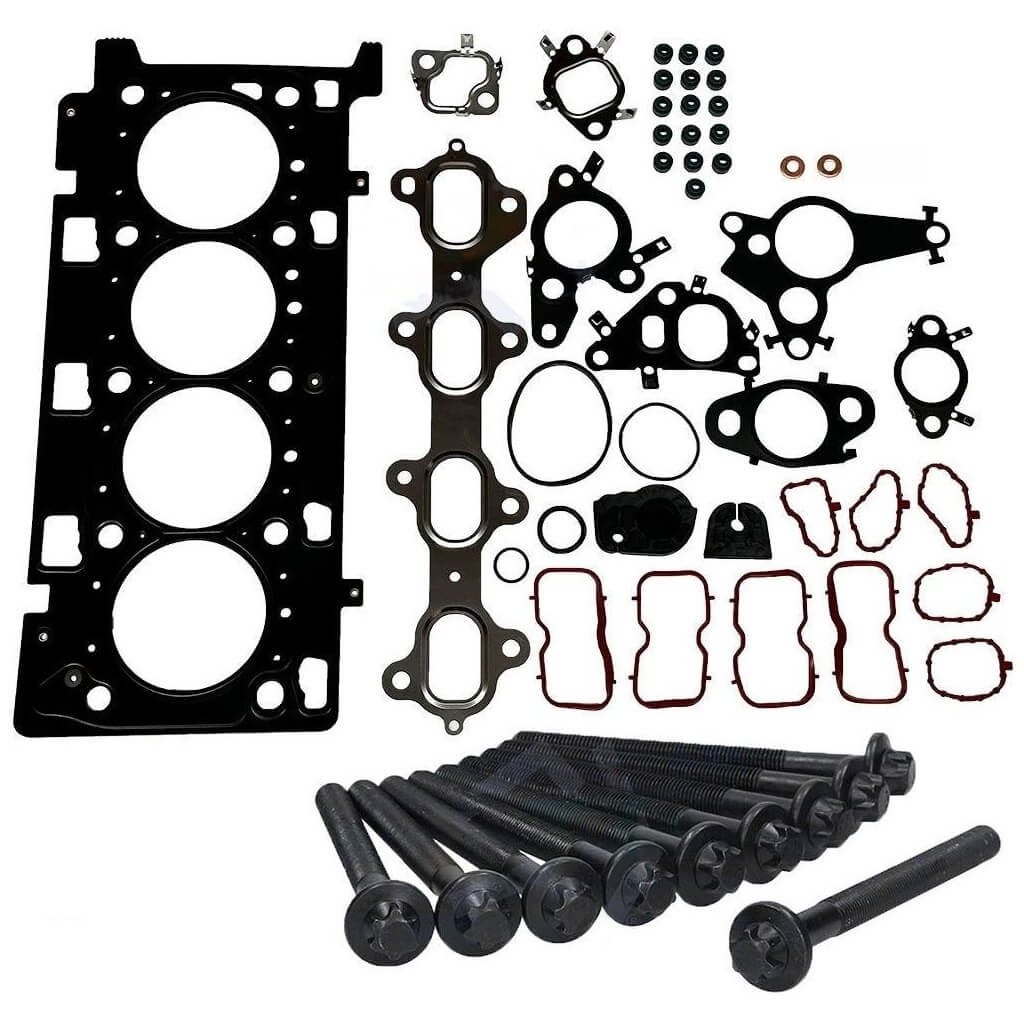

- Complete VRS gasket set with all seals & O-rings

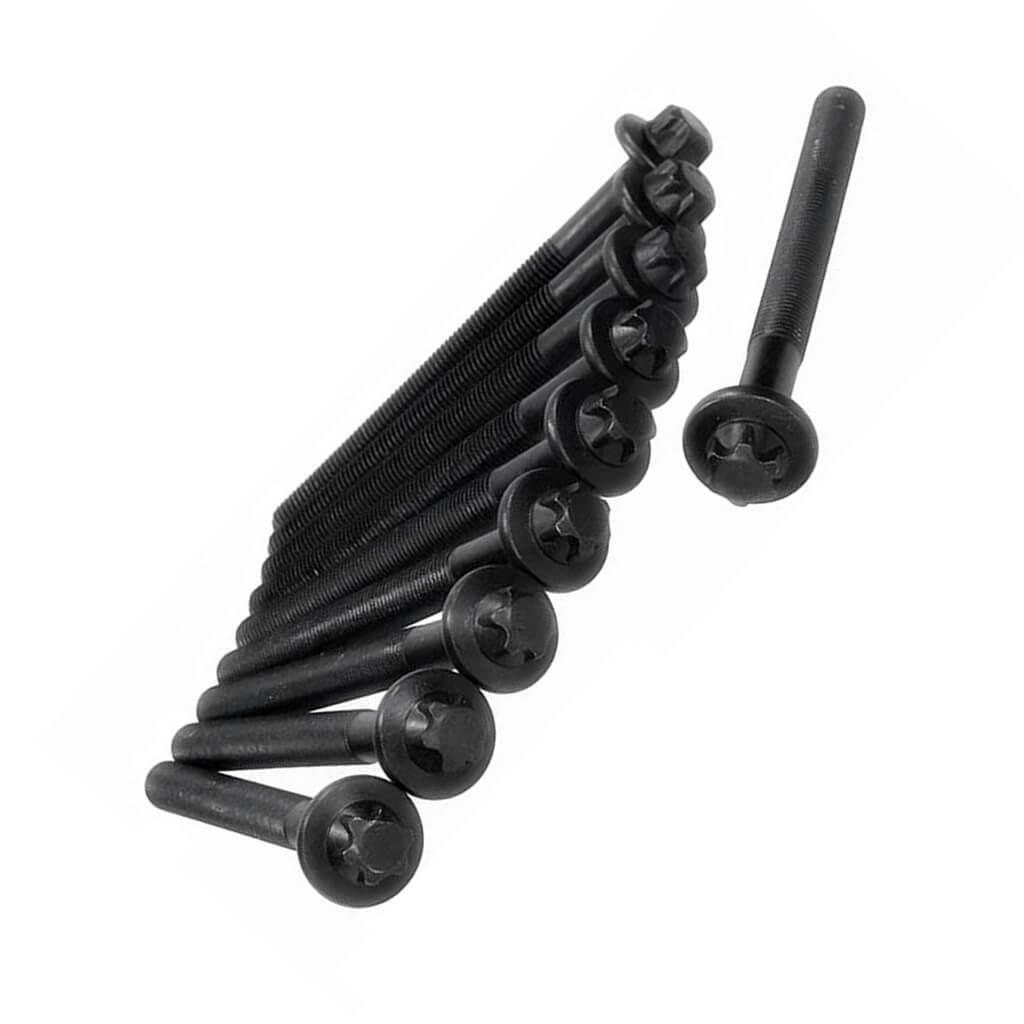

- Torque-to-yield (TTY) stretch bolts (single-use)
- ✓ Free Delivery: Available to most Australian addresses — Perth pickup also available
Key Specifications:
- Engine Code: YS23DDT / YS23DDTT — 2.3L turbo diesel & twin turbo diesel
- Valve configuration: 16-valve DOHC
- Head gasket: Multi-layer steel (MLS) — thickest specification
- Bolt type: Torque-to-yield (TTY) stretch bolts (single-use)
- Camshafts/rockers/lifters: Not included — reuse originals
- Quality: 100% quality inspected, valve-to-seat compression tested, head face checked and refaced if necessary
- ✓ Warranty: 12 months
Compatibility Guide
Guide only — please contact us if you are unsure.
- 2015–2021: Nissan Navara NP300 D23 with 2.3L turbo diesel, engine code YS23DDT
- 2015–2021: Nissan Navara NP300 D23 with 2.3L twin turbo diesel, engine code YS23DDTT
A cost-effective solution for NP300 owners whose original camshafts and valve train are in good condition — no need to replace parts that don't need replacing.
Order online or by phone. Pickup available in Perth (Midland) or fast dispatch from Melbourne.
Further Reading: YS23 Cylinder Head Failure — Symptoms, Causes & Replacement Options
Frequently Asked Questions
Can I reuse my original camshafts and rockers?
Yes — if your camshafts, rocker arms and hydraulic lifters are in good condition, they can be transferred directly to the new head. If you need these parts supplied, choose our YS23 Complete Cylinder Head.
Does this suit both the single turbo and twin turbo NP300?
Yes — this head suits both the YS23DDT (single turbo) and YS23DDTT (twin turbo) variants of the 2.3L engine.
Related products: YS23 Complete Cylinder Head with Camshafts | YS23 Head Gasket Set with Bolts | Browse all Nissan Navara NP300 YS23 Parts
Fitment & Product FAQ
Are the cylinder heads supplied assembled?
Most are supplied assembled, with the camshaft, valves, springs and seals already fitted so they are ready for installation. Some applications require the original camshaft and rocker gear to be transferred across. Confirm the details in the ‘What’s Included’ section for the product you are viewing.
What will I receive with my order?
The contents vary by application. Most complete cylinder-head kits include the assembled head, a VRS gasket set and new head bolts. Some products require reuse of the original camshaft and rockers. For engines using an MLS gasket, we supply the thickest available specification. Gasket-set-only products include the head gasket, manifold gaskets, valve stem seals, rocker cover gasket, head bolts and required O-rings. Check the product’s ‘What’s Included’ section for the exact contents.
What warranty is included?
Every cylinder head includes a 12-month warranty against manufacturing defects. We carefully select our heads and stand behind the quality supplied.
How can I confirm it fits my vehicle?
Use the ‘Fits’ section to check the compatible make, model, year and engine code. If you are still unsure, send us your VIN before ordering and we can confirm the application.
How quickly will my order arrive?
Orders are dispatched from Perth or Melbourne. Most deliveries arrive within 2–5 business days, with express delivery available at checkout.
Does the head need machining before installation?
No. Our cylinder heads are manufactured to OEM specifications and are supplied ready to fit, so machining should not be required before installation.
