Toyota Landcruiser 100 Series FZJ105 1FZ-FE 4.5L Cylinder Head Complete
Toyota Landcruiser 100 Series FZJ105 1FZ-FE 4.5L Cylinder Head Complete
Couldn't load pickup availability

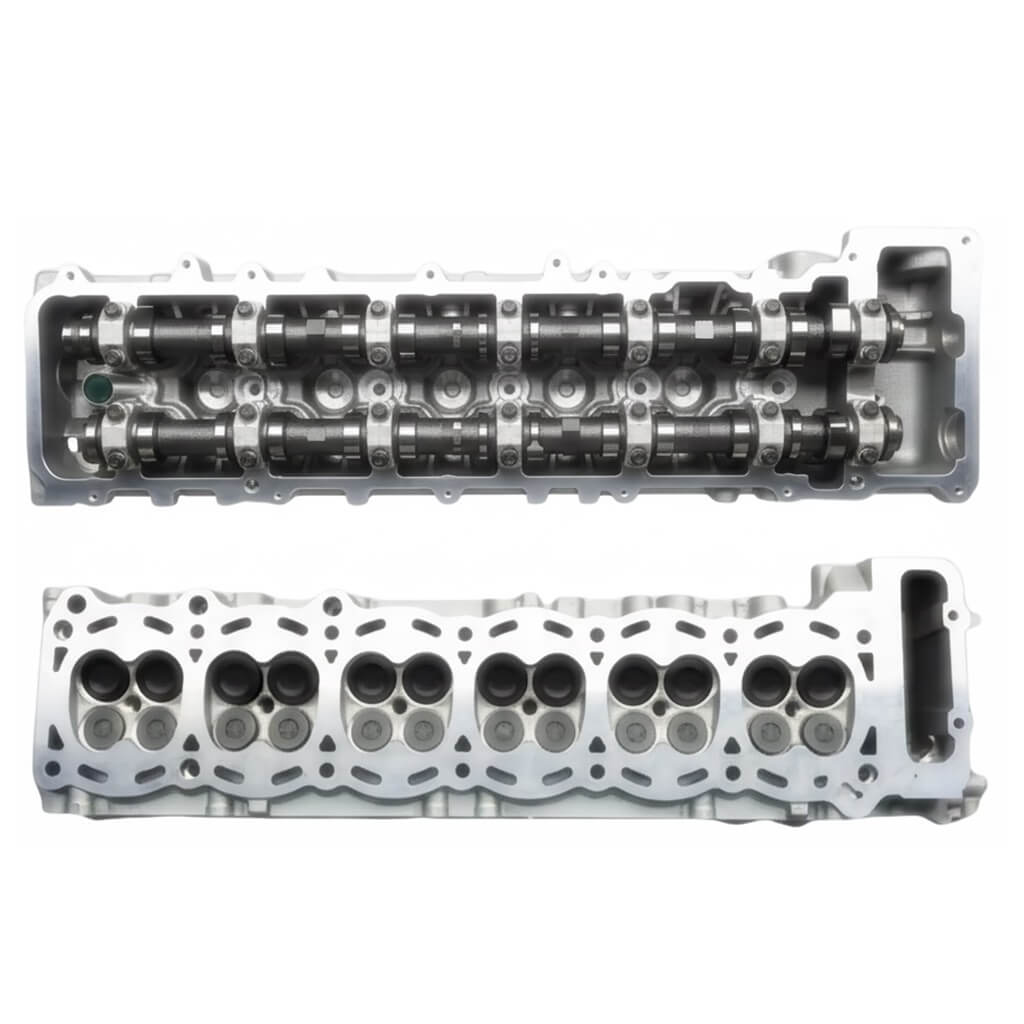

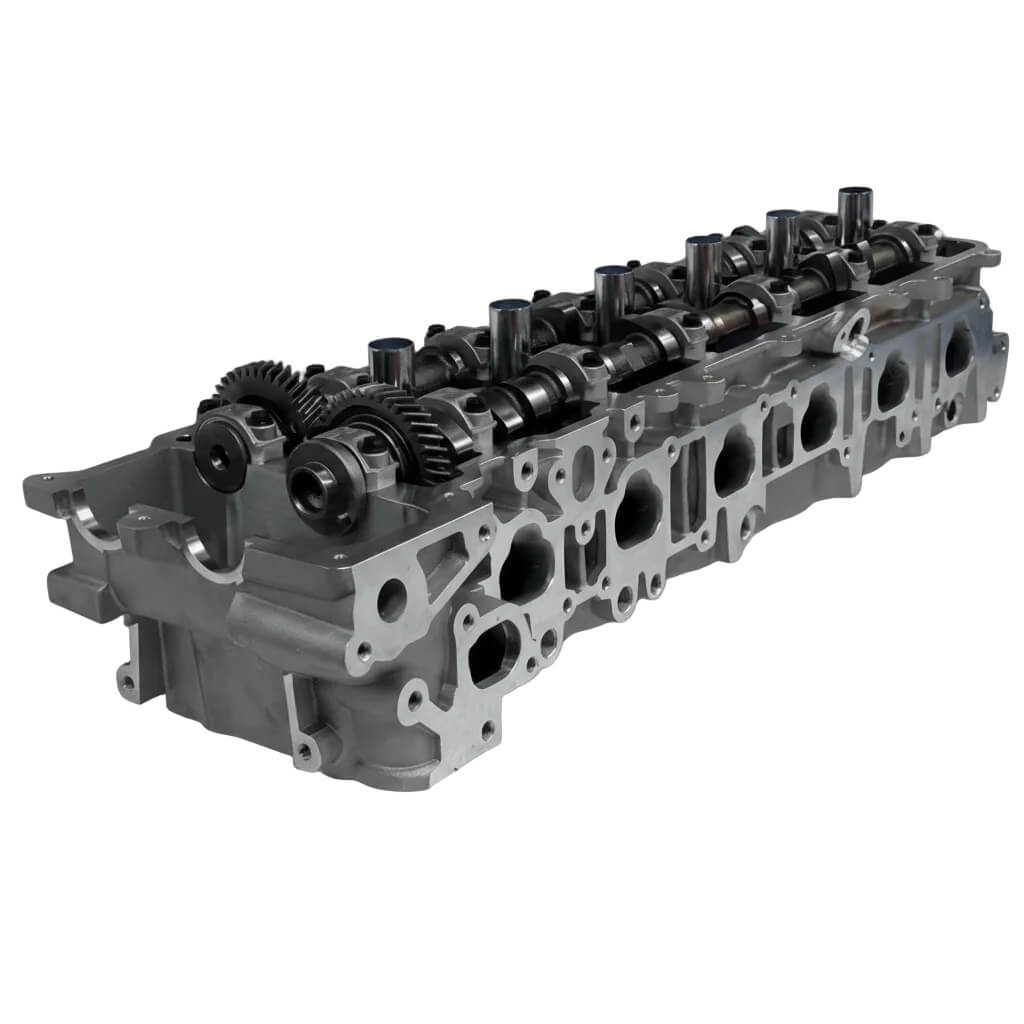

Complete 1FZ-FE Cylinder Head — 100 Series Ready to Install
Brand new complete 1FZ-FE cylinder head for Toyota Landcruiser 100 Series with 4.5L 24-valve DOHC petrol engine. Both camshafts installed, shim tappets with clearances preset, valves, springs, retainers, seals, VRS gasket set and TTY head bolts. Valve-to-seat compression tested, head face checked and refaced if necessary.
Fits: Toyota Landcruiser 100 Series FZJ105, FZJ75, FZJ78, FZJ79 (03/1998–2007) — Engine code 1FZ-FE, 4.5L 24-valve DOHC petrol, coil pack type
Important: This head suits the coil pack 1FZ-FE (100 Series) only — different casting to the 80 Series distributor type. For FZJ80, see our 1FZ-FE 80 Series Cylinder Head.
What's Included:

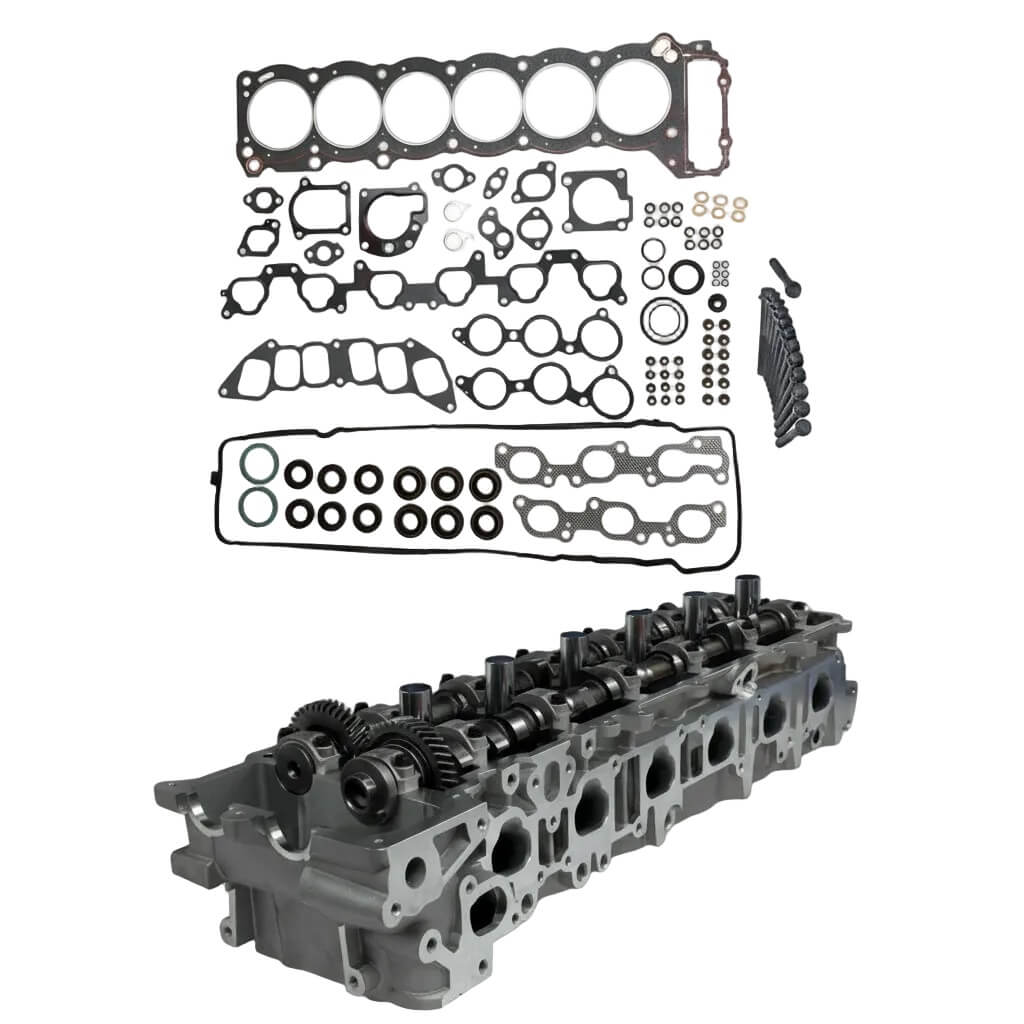

- Brand new complete cylinder head assembly
- Both camshafts installed with shim tappets — tappet clearances preset
- Valves, springs, retainers & seals fitted

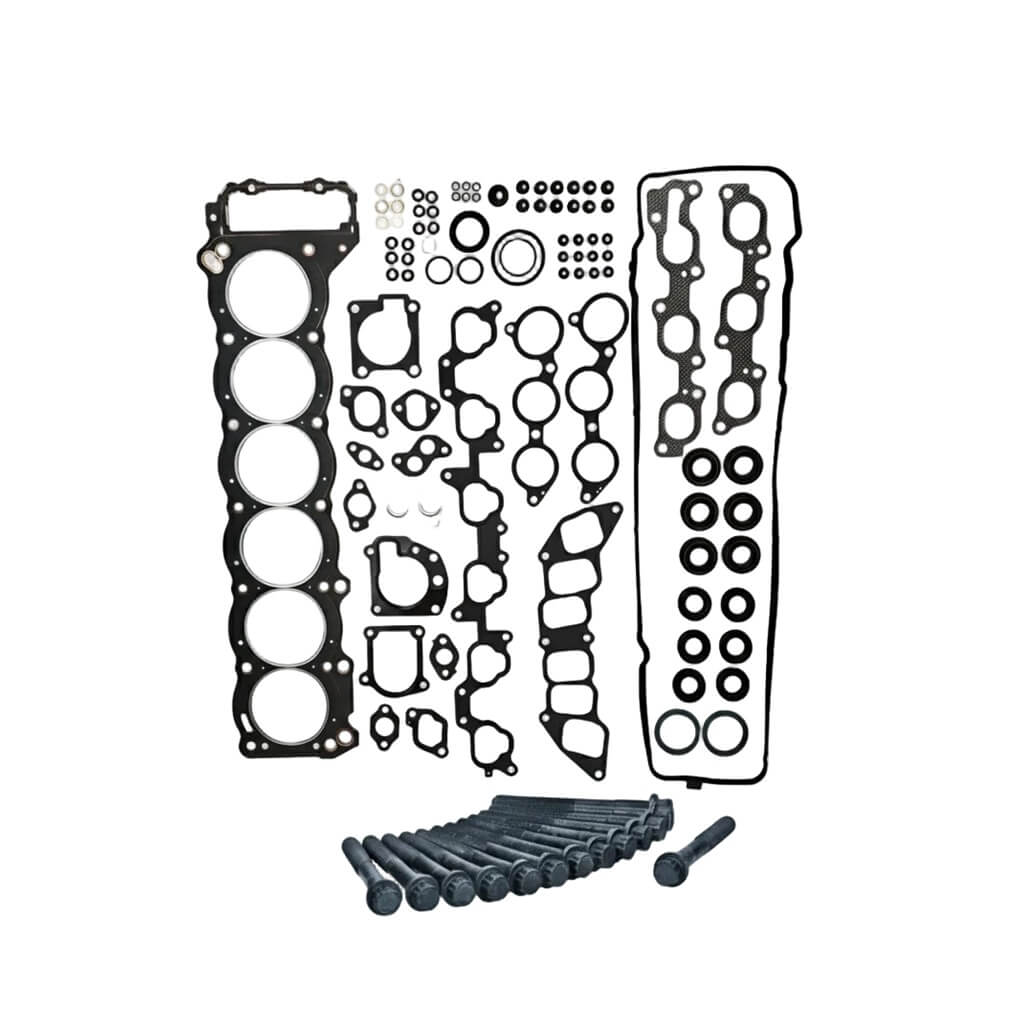

- Premium VRS gasket set with all seals

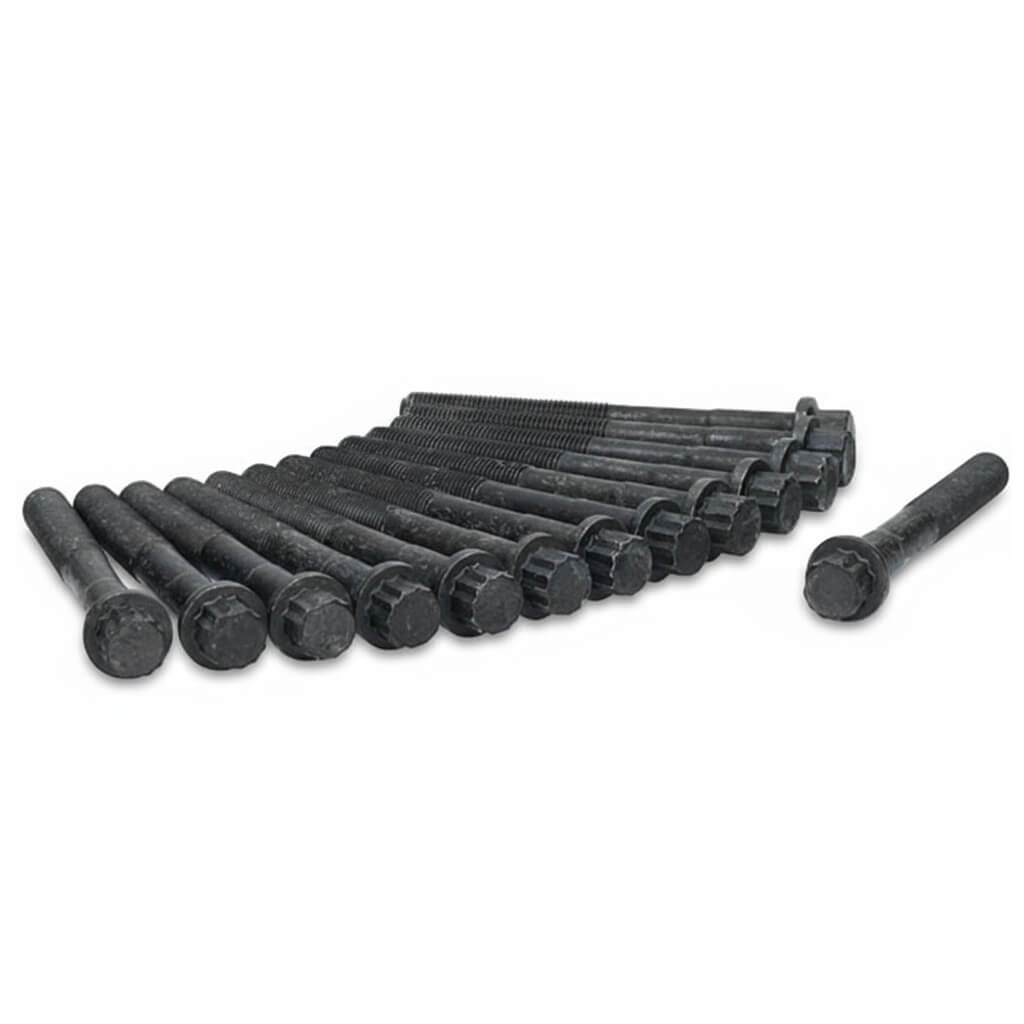

- Torque-to-yield (TTY) stretch bolts (single-use)
- ✓ Free Delivery: Available to most Australian addresses — Perth pickup also available
Key Specifications:
- Engine Code: 1FZ-FE — 4.5L 24-valve DOHC petrol
- Fitment: Direct fit replacement — bolt-on installation, no modifications required
- Type: Premium aftermarket replacement — no core exchange required
- Spark plug seal diameter: 43mm (coil pack type)
- Bolt type: Torque-to-yield (TTY) stretch bolts (single-use)
- Quality: 100% quality inspected, valve-to-seat compression tested, head face checked and refaced if necessary
- ✓ Warranty: 12 months
Compatibility Guide
Guide only — please contact us if you are unsure.
- 03/1998–2002: Toyota Landcruiser FZJ105 — 1FZ-FE coil pack
- 03/1998–1999: Toyota Landcruiser FZJ75 — 1FZ-FE coil pack
- 1998–2001: Toyota Landcruiser FZJ78 — 1FZ-FE coil pack
- 1998–2007: Toyota Landcruiser FZJ79 — 1FZ-FE coil pack
A premium quality replacement for one of Toyota's most capable and long-lived 4WD platforms — built to get you back on the road and back on the track.
Order online or by phone. Pickup available in Perth (Midland) or fast dispatch from Melbourne.
Related products: 1FZ-FE 80 Series Cylinder Head | 1FZ Head Gasket Set | Browse all Toyota 1FZ Parts
Fitment & Product FAQ
Are the cylinder heads supplied assembled?
Most are supplied assembled, with the camshaft, valves, springs and seals already fitted so they are ready for installation. Some applications require the original camshaft and rocker gear to be transferred across. Confirm the details in the ‘What’s Included’ section for the product you are viewing.
What will I receive with my order?
The contents vary by application. Most complete cylinder-head kits include the assembled head, a VRS gasket set and new head bolts. Some products require reuse of the original camshaft and rockers. For engines using an MLS gasket, we supply the thickest available specification. Gasket-set-only products include the head gasket, manifold gaskets, valve stem seals, rocker cover gasket, head bolts and required O-rings. Check the product’s ‘What’s Included’ section for the exact contents.
What warranty is included?
Every cylinder head includes a 12-month warranty against manufacturing defects. We carefully select our heads and stand behind the quality supplied.
How can I confirm it fits my vehicle?
Use the ‘Fits’ section to check the compatible make, model, year and engine code. If you are still unsure, send us your VIN before ordering and we can confirm the application.
How quickly will my order arrive?
Orders are dispatched from Perth or Melbourne. Most deliveries arrive within 2–5 business days, with express delivery available at checkout.
Does the head need machining before installation?
No. Our cylinder heads are manufactured to OEM specifications and are supplied ready to fit, so machining should not be required before installation.
