Toyota Hiace Hilux Prado 1KD-FTV 3.0L Cylinder Head Complete

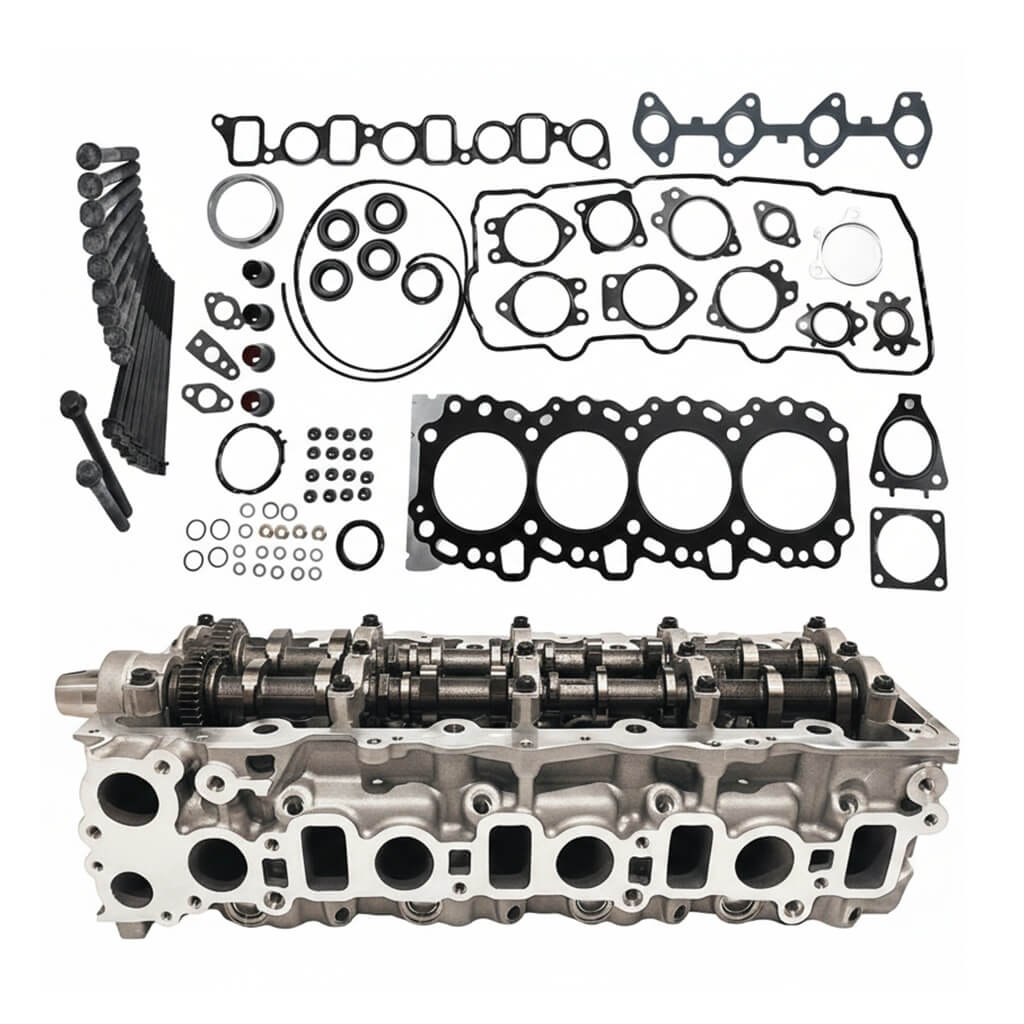

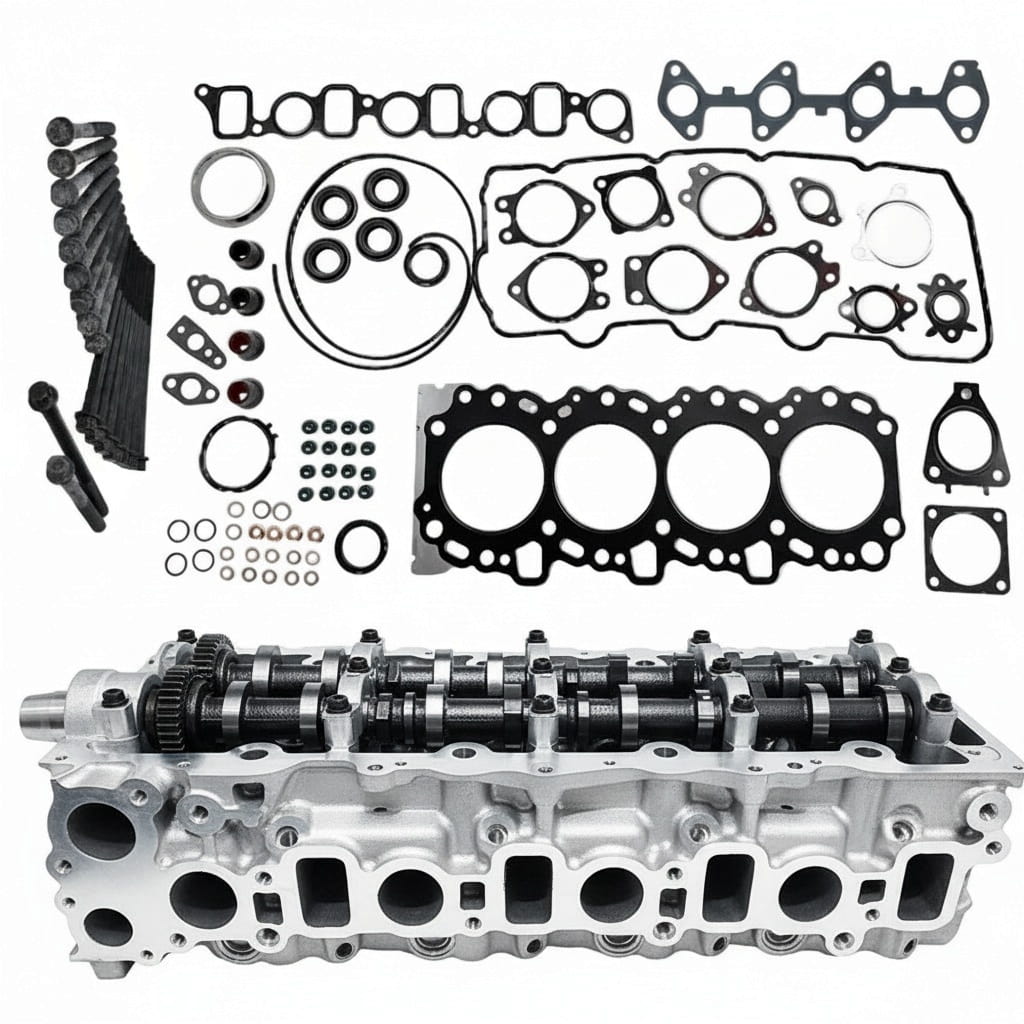

Complete 1KD-FTV Cylinder Head — Ready to Install

Brand-new complete 1KD-FTV cylinder head for Toyota Hilux, Hiace, and Land Cruiser Prado with 3.0L turbo diesel engine. Professionally assembled, valve-to-seat compression tested, and supplied with everything needed for a straight bolt-on installation.

Fits: Toyota Hilux, Hiace, Prado / Land Cruiser Prado (2006–2015) — Engine code 1KD-FTV, 1KD, 3.0L turbo diesel

What's Included:

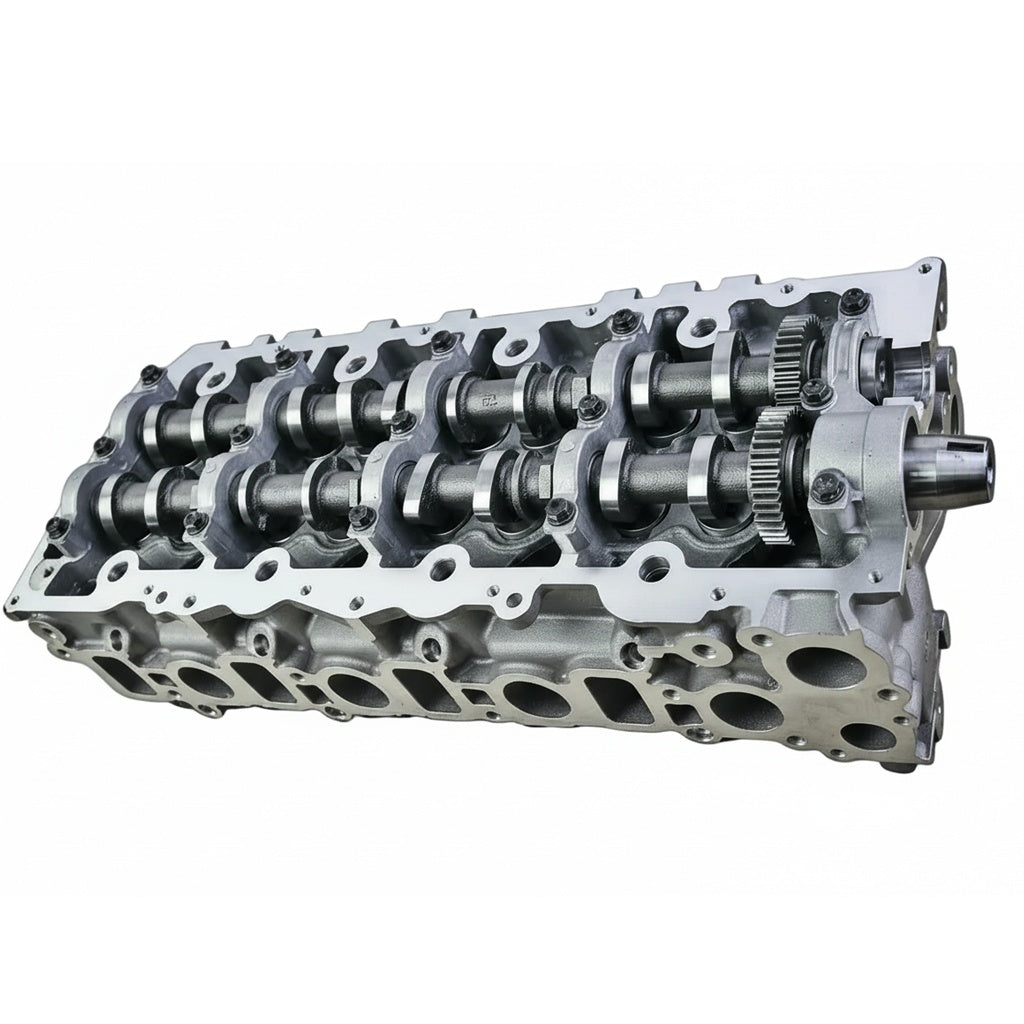

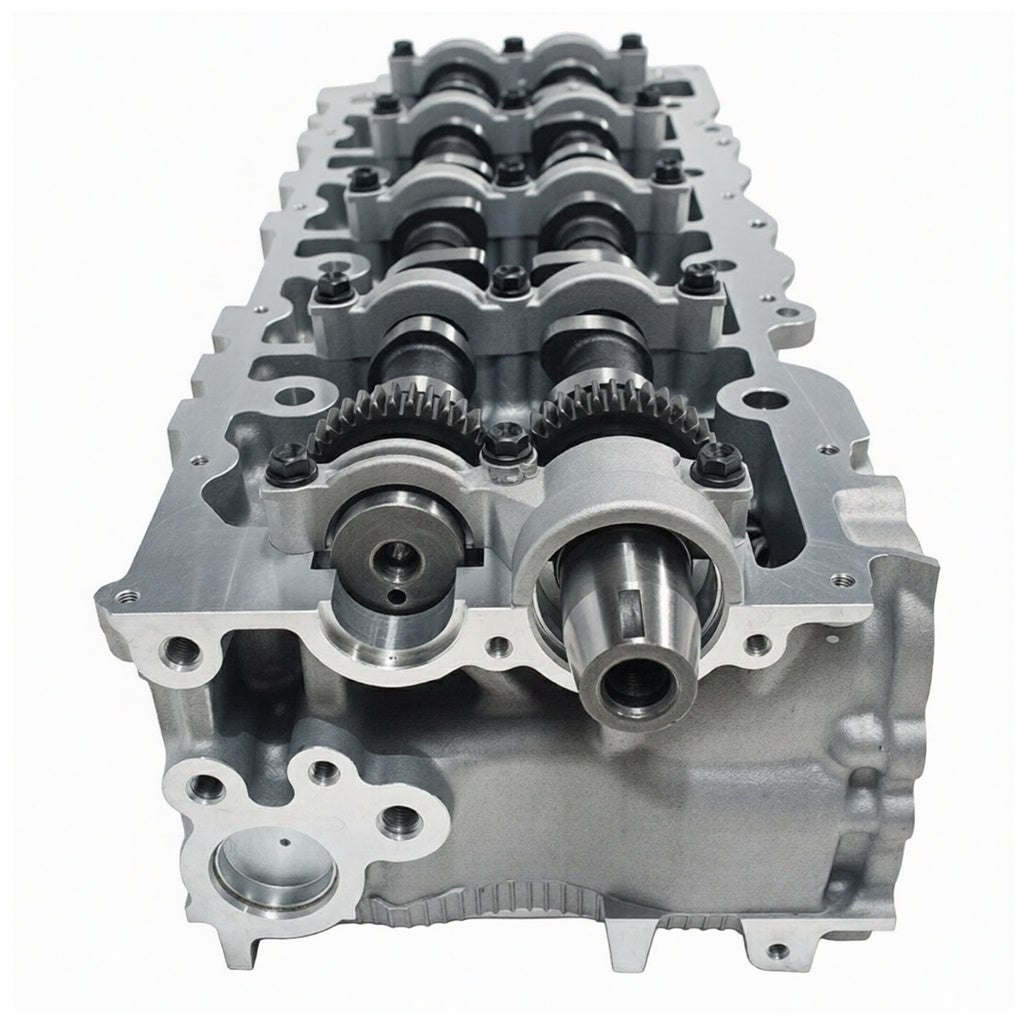

• Brand new complete cylinder head assembly

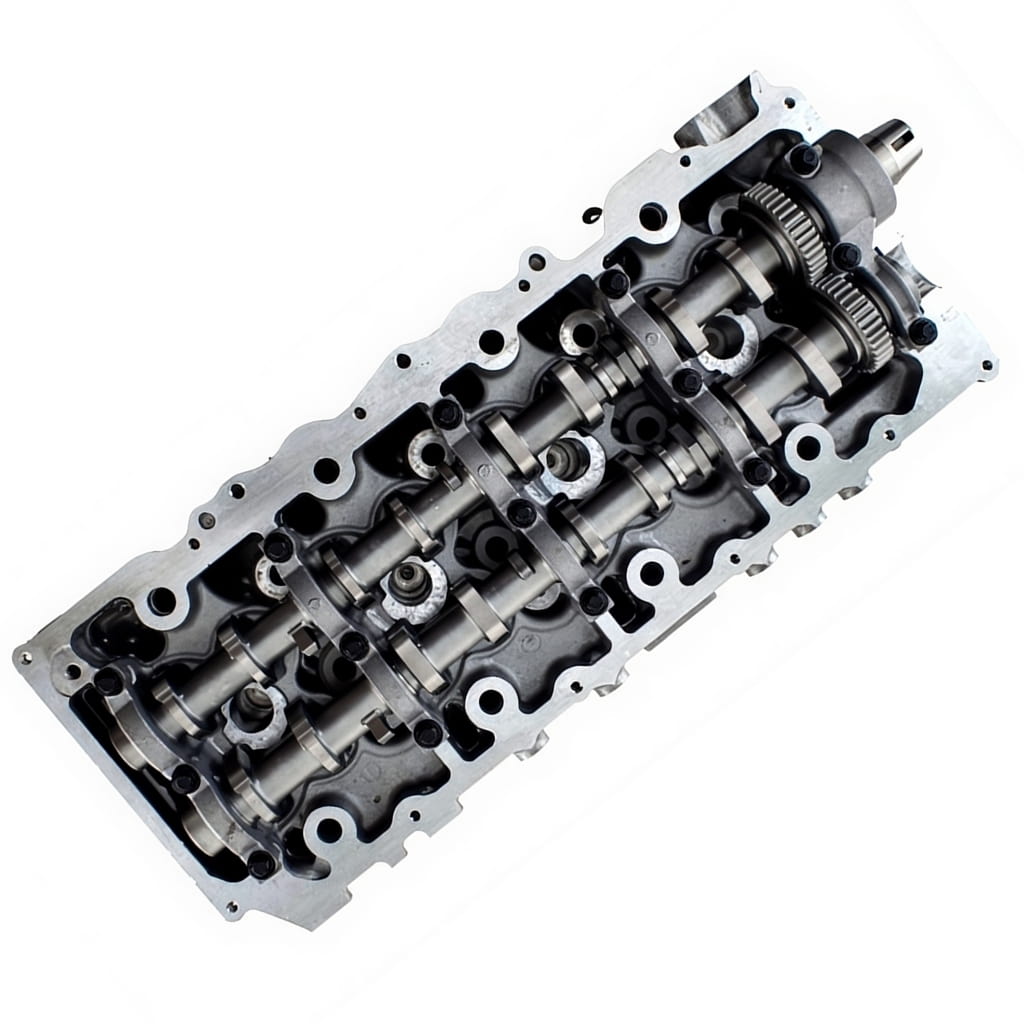

• Both camshafts installed with shim tappets — tappet clearances preset
• Valves, springs, retainers & seals fitted
• Multi-layer steel (MLS) head gasket — thickest specification

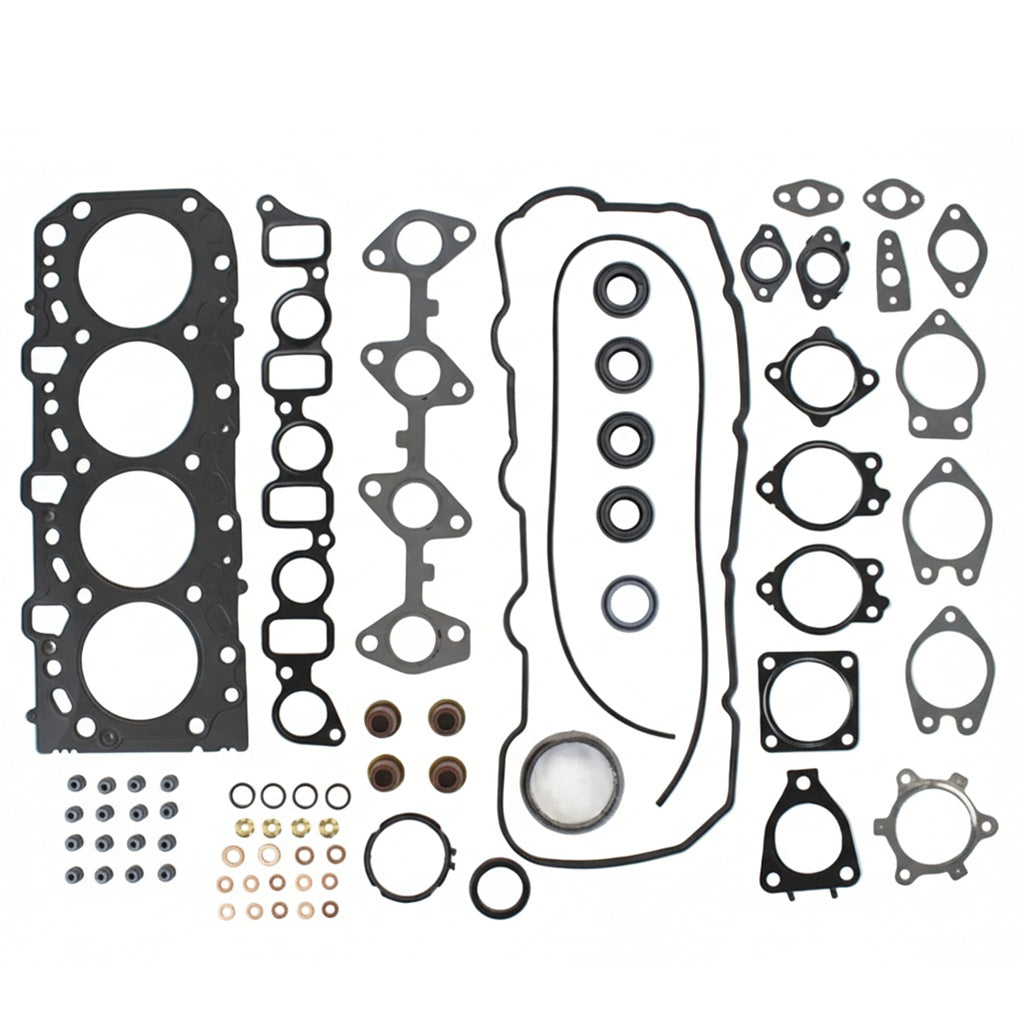

• Complete VRS gasket set with all seals & O-rings
• Torque-to-yield (TTY) stretch bolts (single-use)
• ✓ Free Delivery: Available to most Australian addresses — Perth pickup also available

Key Specifications:

• Engine Code: 1KD-FTV / 1KD — 3.0L turbo diesel
• Valve configuration: 16-valve DOHC
• Head gasket: Multi-layer steel (MLS) — thickest specification
• Bolt type: Torque-to-yield (TTY) stretch bolts (single-use)
• Quality: 100% quality inspected, valve-to-seat compression tested, head face checked and refaced if necessary
• ✓ Warranty: 12 months

Compatibility Guide

Guide only — please contact us if you are unsure.

• 2006–2015: Toyota Hilux with 3.0L turbo diesel, engine code 1KD-FTV
• 2006–2017: Toyota Hiace with 3.0L turbo diesel, engine code 1KD-FTV
• 2006–2015: Toyota Prado / Land Cruiser Prado with 3.0L turbo diesel, engine code 1KD-FTV

Order online or by phone. Pickup available in Perth (Midland) or fast dispatch from Melbourne.

Frequently Asked Questions

Why choose a complete assembled head over a bare casting?
Arrives fully assembled and pressure tested — both camshafts fitted, tappet clearances set, valves seated. No machine shop required, saving significant time and labour cost.

Are the head bolts reusable?
No — the 1KD-FTV uses torque-to-yield (TTY) stretch bolts which are single-use only. New bolts are included in this kit.

Does this suit the D4D engine?
Yes — the 1KD-FTV is also commonly referred to as the D4D (Direct injection 4-stroke common rail Diesel). This head suits all 1KD-FTV / D4D applications listed above.

Not sure if your 1KD-FTV cylinder head has failed?
Read our guide: 1KD-FTV Cylinder Head Failure — Symptoms, Causes & Replacement →
