Mitsubishi Triton Challenger 4D56 Cylinder Head Complete
Only 4 products left
Sale price
$1,650.00

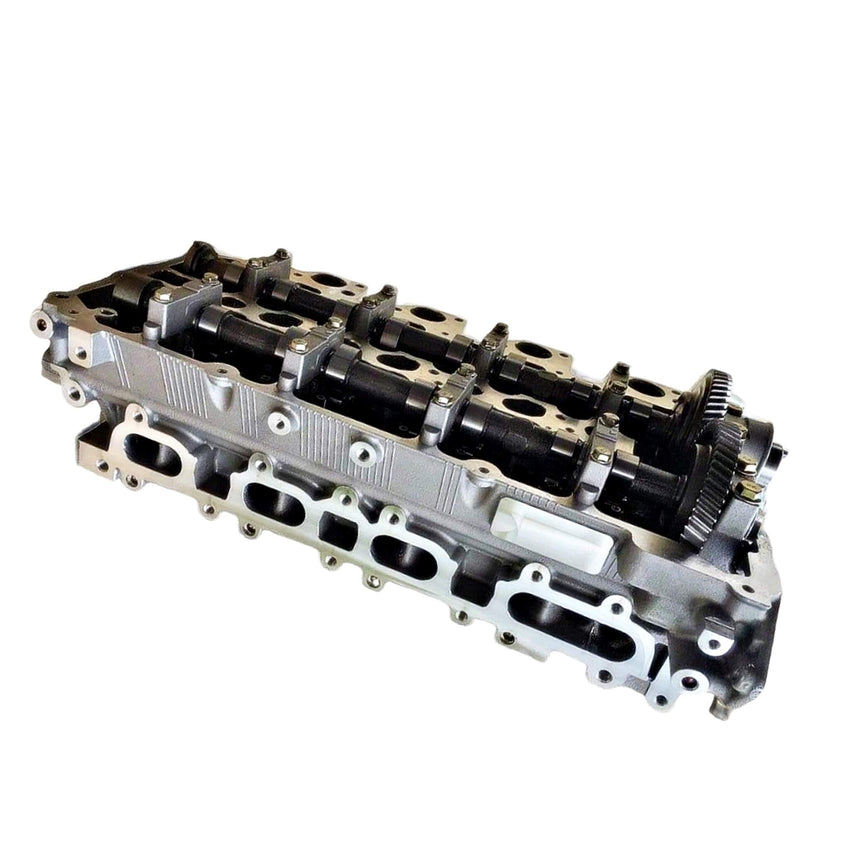

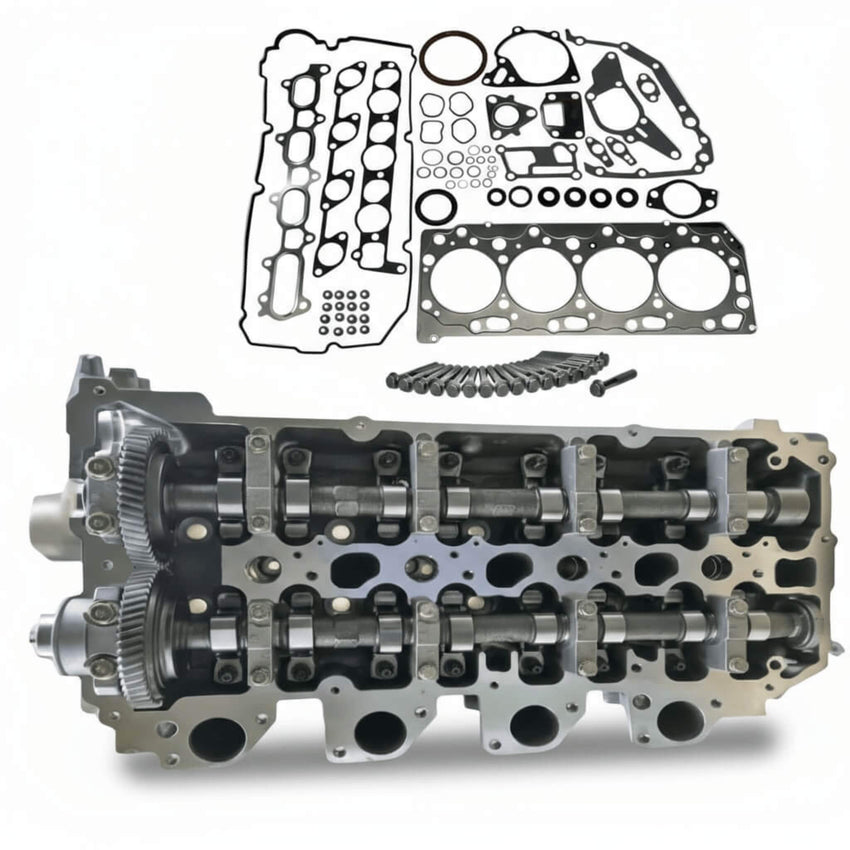

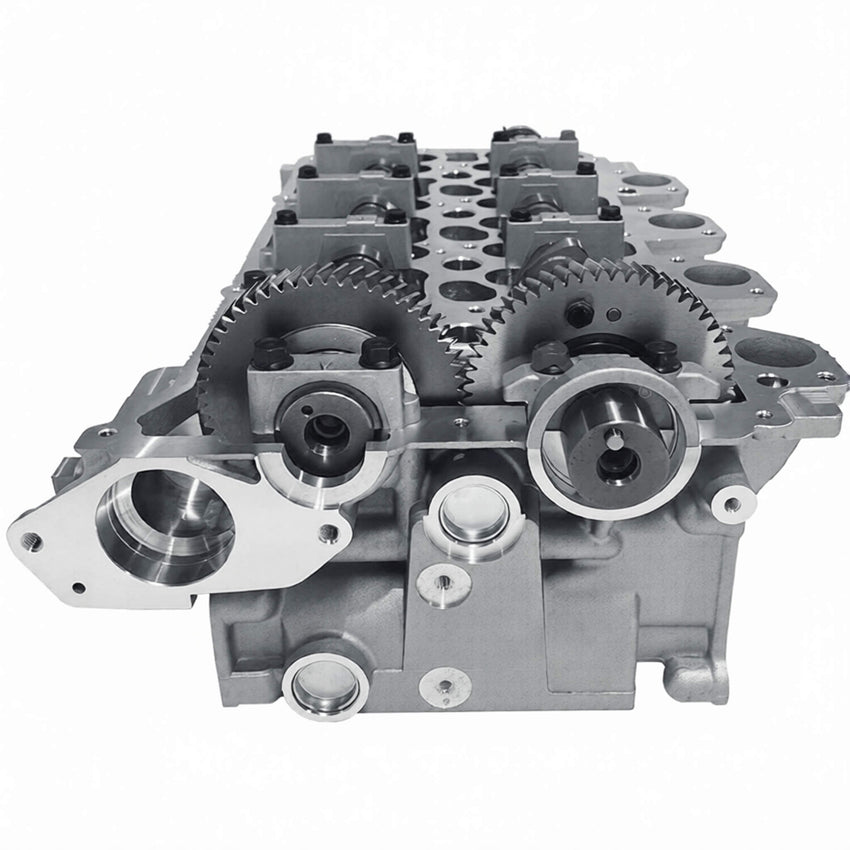

Complete cylinder head assembly for Mitsubishi Triton and Challenger with 4D56U 2.5L turbo diesel engines. Ready to install with valves, springs, camshafts, and rocker arms already fitted. Includes complete gasket set with MLS head gasket and high-tensile stretch bolts. One cylinder head per vehicle.
Fitment
Mitsubishi: Triton, Challenger (2.5L 4D56U turbo diesel, 2006-2015)
Engine codes: 4D56U, 4D56Di-T (2.5L turbo diesel)
What's Included
- Assembled cylinder head with valves, springs, guides, and seals fitted
- Inlet and exhaust camshafts fitted
- Rocker arms fitted
- Multi-layer steel (MLS) cylinder head gasket (thickest specification for universal compatibility)

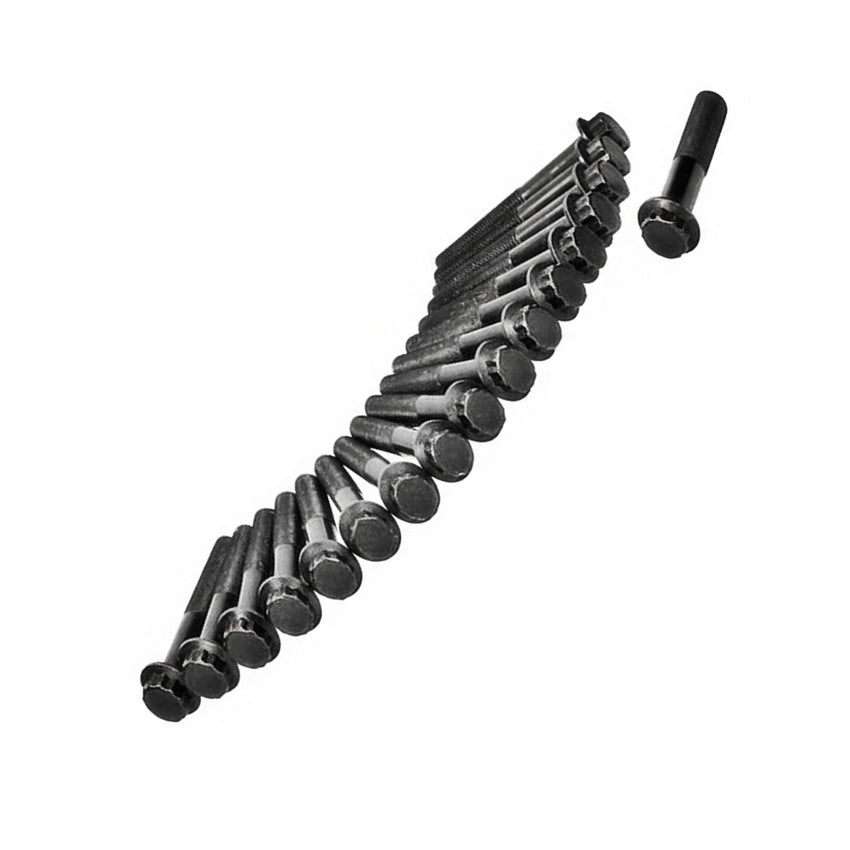

- High-tensile stretch bolts (torque-to-yield, single-use)

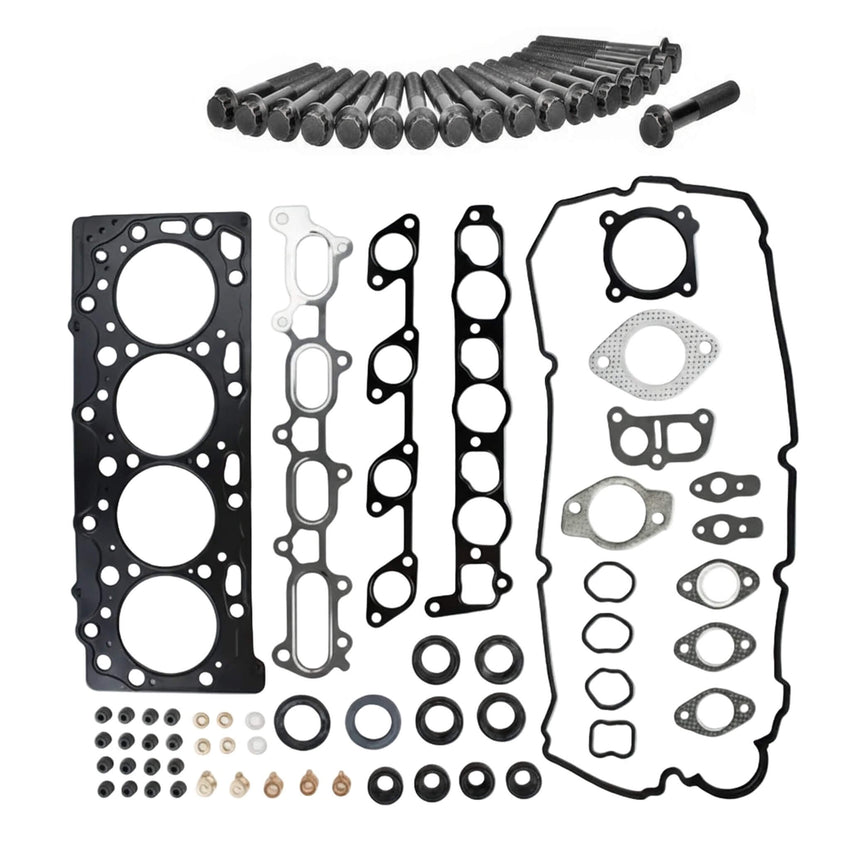

- Complete head gasket set with all seals and O-rings
- Head bolt torque, tension, and sequence specifications included
- Pressure-tested and ready to install
Installation Notes
- Important: Remove camshafts and rocker arms from the cylinder head before fitting to the engine block (they are supplied fitted but must be removed for installation)
- Install cylinder head to the block following the factory torque sequence using the new head bolts included.
- Refit camshafts and rocker arms after head installation
- Check and adjust tappet clearances to specification
Specifications
- Engine: 2.5L 4D56U turbo diesel
- Valve configuration: 16-valve DOHC
- Material: Aluminium with precision-machined surfaces
- Head gasket material: Multi-layer steel (MLS) - thickest specification
- Bolt type: Torque-to-yield (TTY) stretch bolts, single-use
Shipping
Ships Australia-wide. In-stock items ship the same or next business day. Local Perth metro stock available for fast dispatch.
Related Products
Need a gasket set separately? Check out our Mitsubishi Triton 4D56U head gasket set with bolts.
