Cylinder Head Supply
Mitsubishi Pajero Triton Delica 4M40T 4M40 2.8L Cylinder Head Complete
Mitsubishi Pajero Triton Delica 4M40T 4M40 2.8L Cylinder Head Complete
Couldn't load pickup availability
Complete 4M40T Cylinder Head — Ready to Install
Brand-new, complete 4M40T cylinder head for Mitsubishi Pajero, Triton, and Delica with a 2.8L 4-cylinder turbo diesel engine. Camshaft installed with shim bucket tappets and valve clearances preset, valves, springs, retainers and seals fitted. MLS head gasket set and TTY head bolts included. Professionally assembled, valve-to-seat compression tested, and head face checked and refaced if necessary.
Fits: Mitsubishi Pajero NJ, NK, NL, NM, Triton MK and Delica (1993–2006) — Engine code 4M40T, 4M40 2.8L turbo diesel. Also suits non-turbo 4M40 engines.
What's Included:
- Brand new complete cylinder head assembly
- Camshaft installed with shim bucket tappets — valve clearances preset
- Valves, springs, retainers & seals fitted
- MLS head gasket — thickest specification
- Complete VRS gasket set with all seals & O-rings

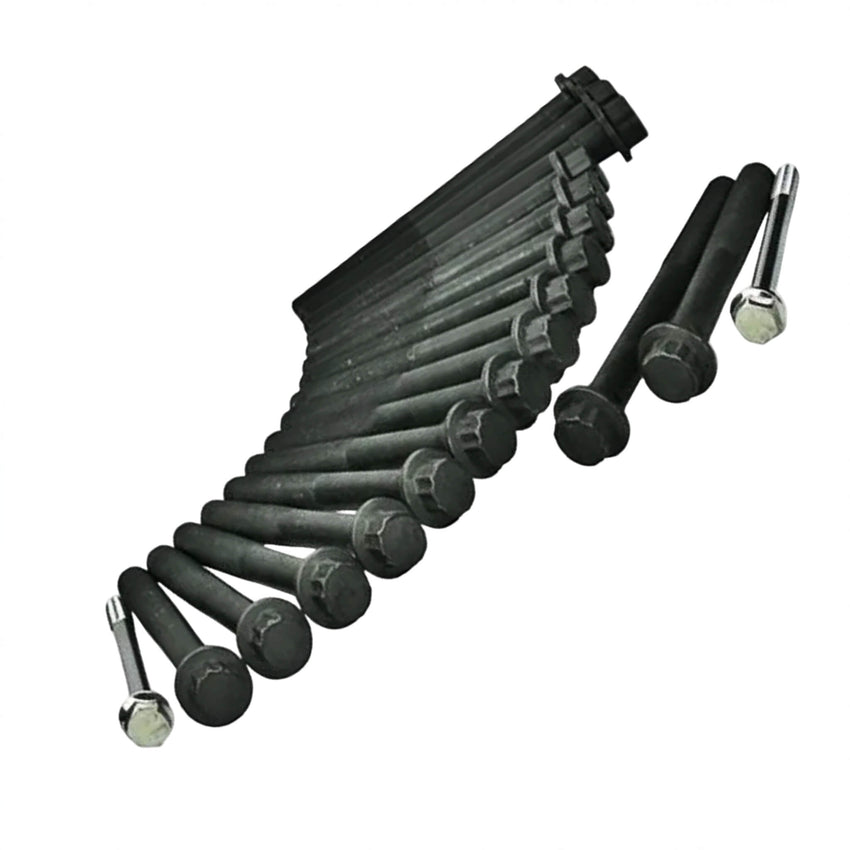

- Torque-to-yield (TTY) stretch bolts (single-use)
- ✓ Free Delivery: Available to most Australian addresses — Perth pickup also available
Key Specifications:
- Engine Code: 4M40T / 4M40 — 2.8L 4-cylinder turbo diesel
- Valve configuration: 8-valve SOHC
- Head gasket: Multi-layer steel (MLS) — thickest specification
- Bolt type: Torque-to-yield (TTY) stretch bolts (single-use)
- Quality: 100% quality inspected, valve-to-seat compression tested, head face checked and refaced if necessary
- ✓ Warranty: 12 months
Compatibility Guide
- 1993–2002: Mitsubishi Pajero NJ NK NL NM with 2.8L turbo diesel, engine code 4M40T
- 11/1996–2006: Mitsubishi Triton MK with 2.8L turbo diesel, engine code 4M40T
- 1994–2002: Mitsubishi Delica PD8W PE8W PF8W with 2.8L turbo diesel, engine code 4M40T
- Also suits non-turbo 4M40 engines across the above model range
A proven workhorse engine in one of Mitsubishi’s most capable 4WD platforms — the 4M40 has earned a strong reputation for durability, and this complete head keeps it that way.
Order online or by phone. Pickup available in Perth (Midland) or fast dispatch from Melbourne.
Frequently Asked Questions
Will this head fit my non-turbo 4M40?
Yes — the 4M40T turbo specification head fits both turbo and non-turbo 4M40 engines. The non-turbo head will not fit a turbo engine, so if you have a turbo model, this is the correct head regardless of whether you are replacing a turbo or non-turbo head.
Are the head bolts reusable?
No — the 4M40T uses torque-to-yield (TTY) stretch bolts, which are single-use only. New bolts are included in this kit.
Related products: 4M40 Head Gasket Set with Bolts | Browse all Mitsubishi 4M40 Parts
Fitment & Product FAQ
Are the cylinder heads supplied assembled?
Most are supplied assembled, with the camshaft, valves, springs and seals already fitted so they are ready for installation. Some applications require the original camshaft and rocker gear to be transferred across. Confirm the details in the ‘What’s Included’ section for the product you are viewing.
What will I receive with my order?
The contents vary by application. Most complete cylinder-head kits include the assembled head, a VRS gasket set and new head bolts. Some products require reuse of the original camshaft and rockers. For engines using an MLS gasket, we supply the thickest available specification. Gasket-set-only products include the head gasket, manifold gaskets, valve stem seals, rocker cover gasket, head bolts and required O-rings. Check the product’s ‘What’s Included’ section for the exact contents.
What warranty is included?
Every cylinder head includes a 12-month warranty against manufacturing defects. We carefully select our heads and stand behind the quality supplied.
How can I confirm it fits my vehicle?
Use the ‘Fits’ section to check the compatible make, model, year and engine code. If you are still unsure, send us your VIN before ordering and we can confirm the application.
How quickly will my order arrive?
Orders are dispatched from Perth or Melbourne. Most deliveries arrive within 2–5 business days, with express delivery available at checkout.
Does the head need machining before installation?
No. Our cylinder heads are manufactured to OEM specifications and are supplied ready to fit, so machining should not be required before installation.
