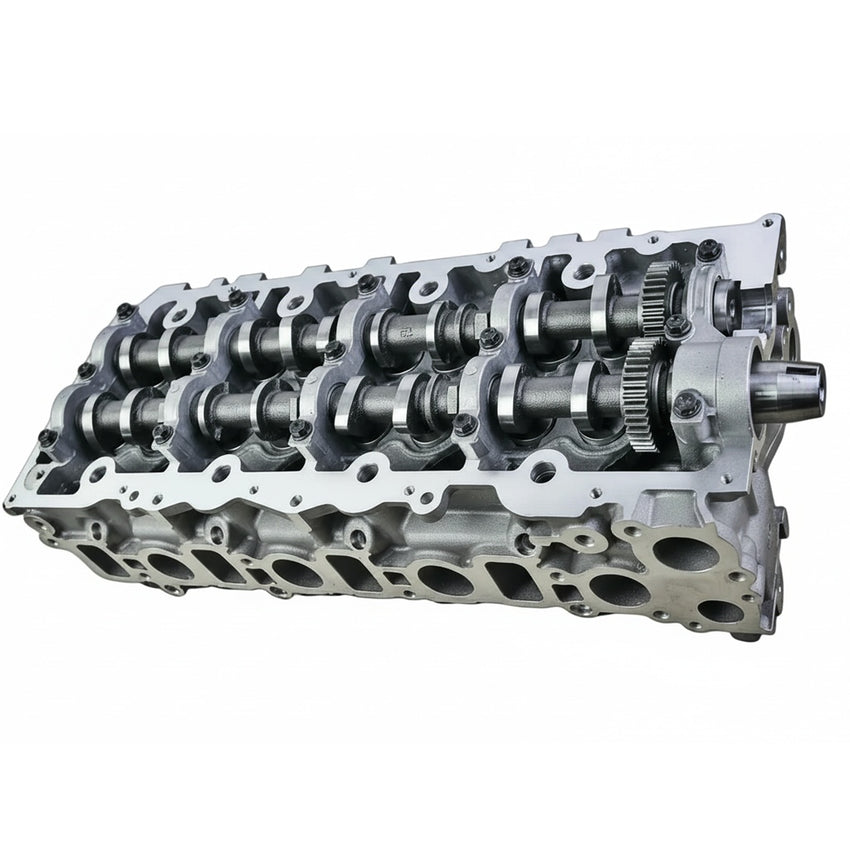

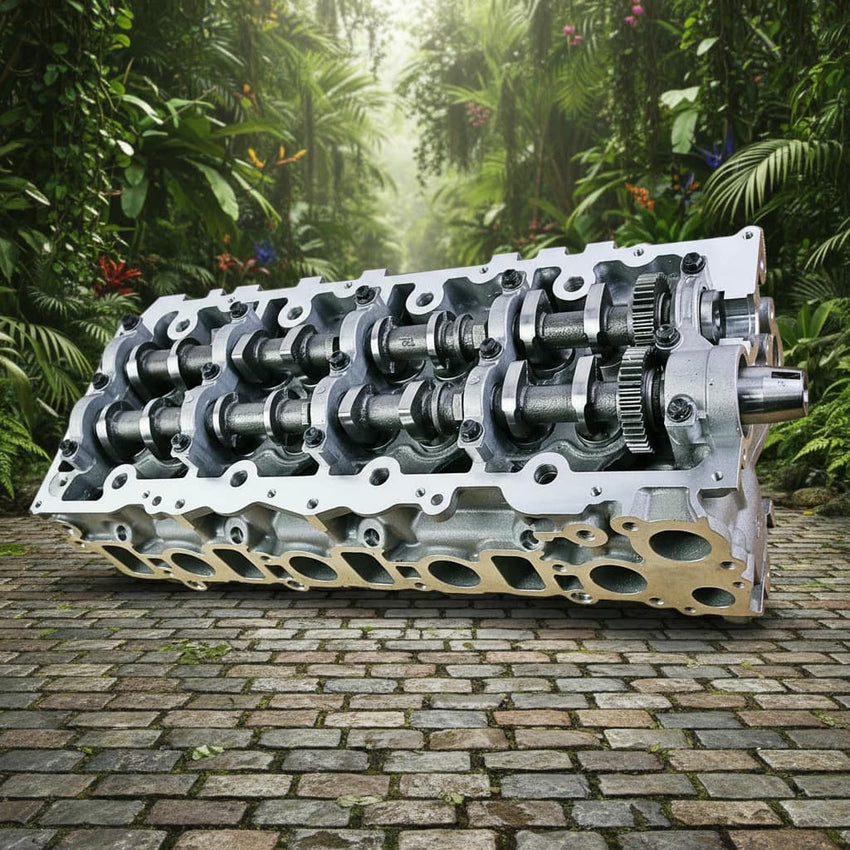

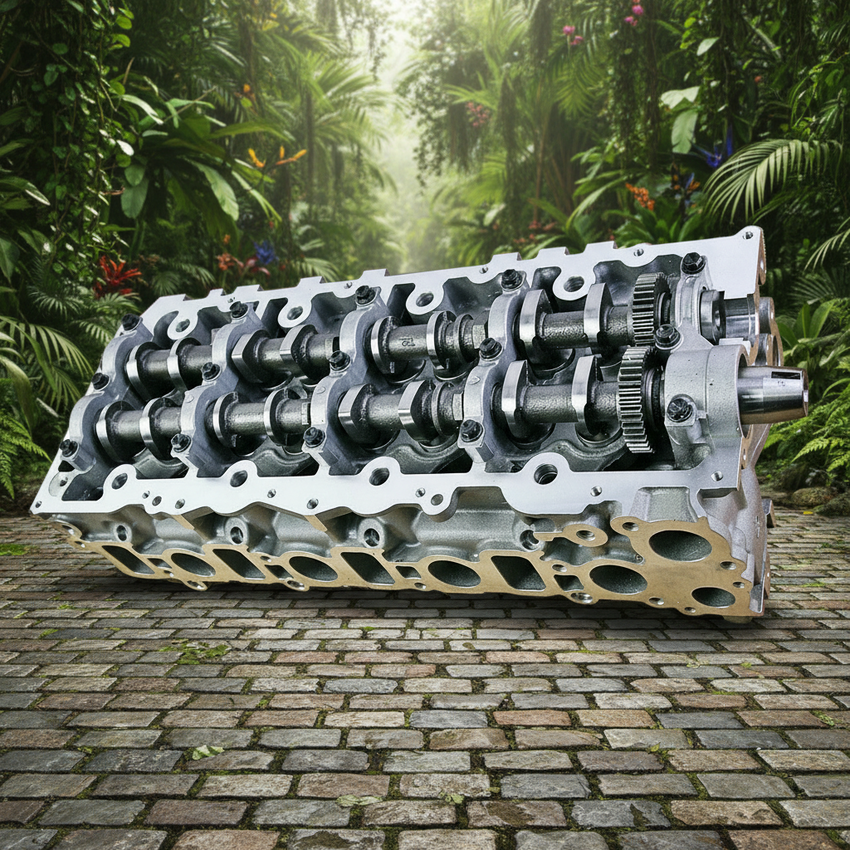

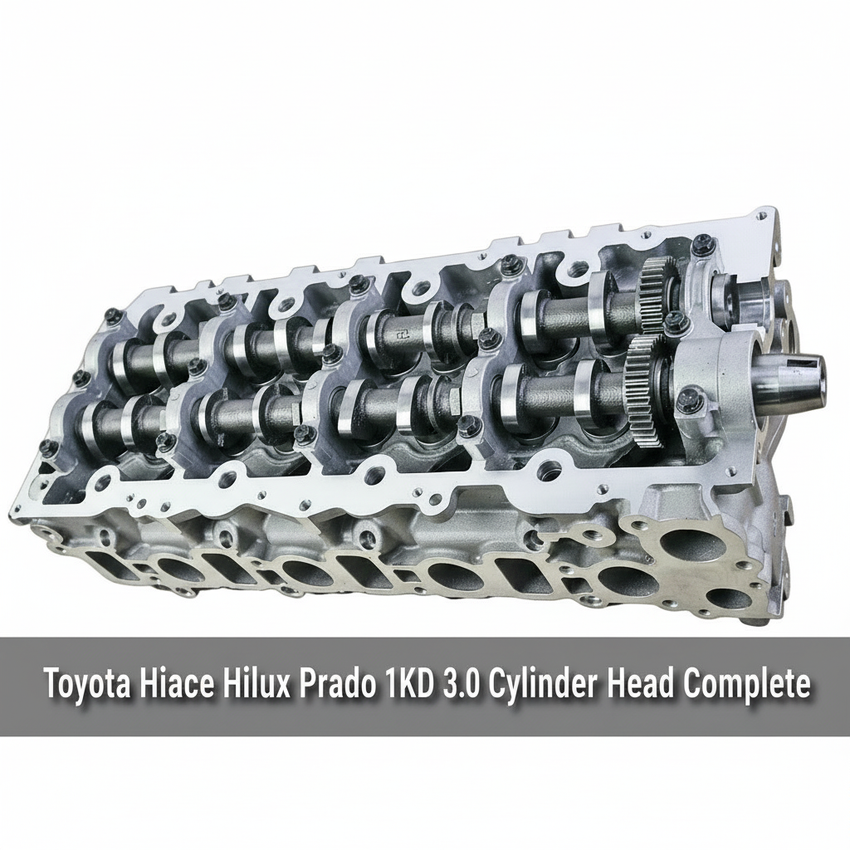

Toyota Hiace Hilux Prado 1KD 3.0 Cylinder Head Complete
Only 6 products left
Sale price
$1,720.00
Regular price
$1,830.00
Discounted amount
Save 6%
Sale

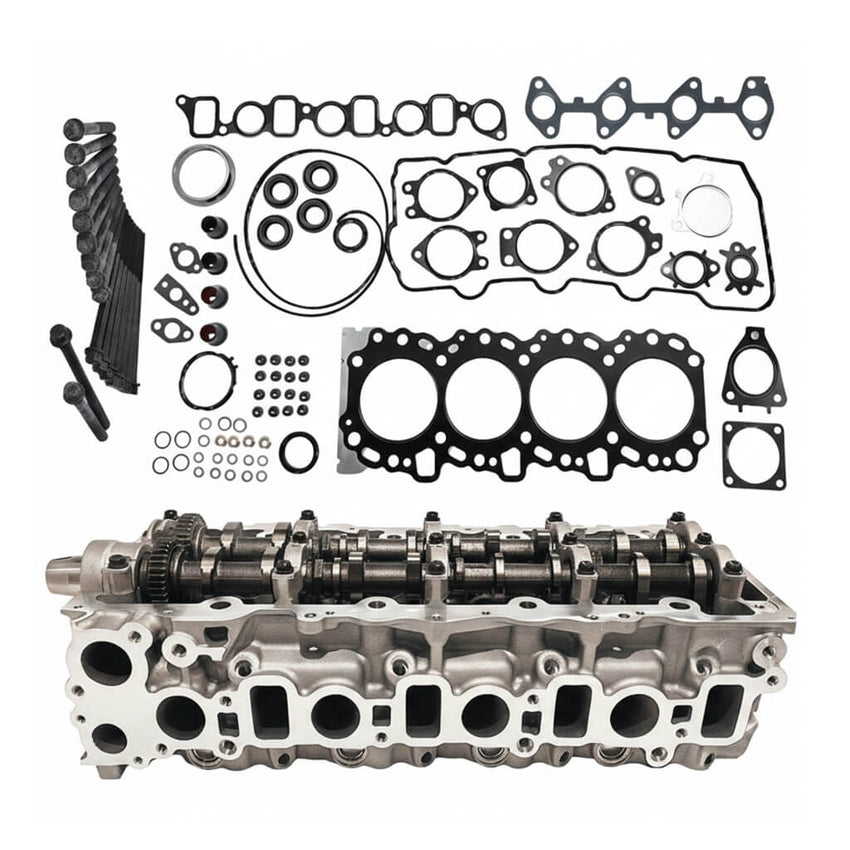

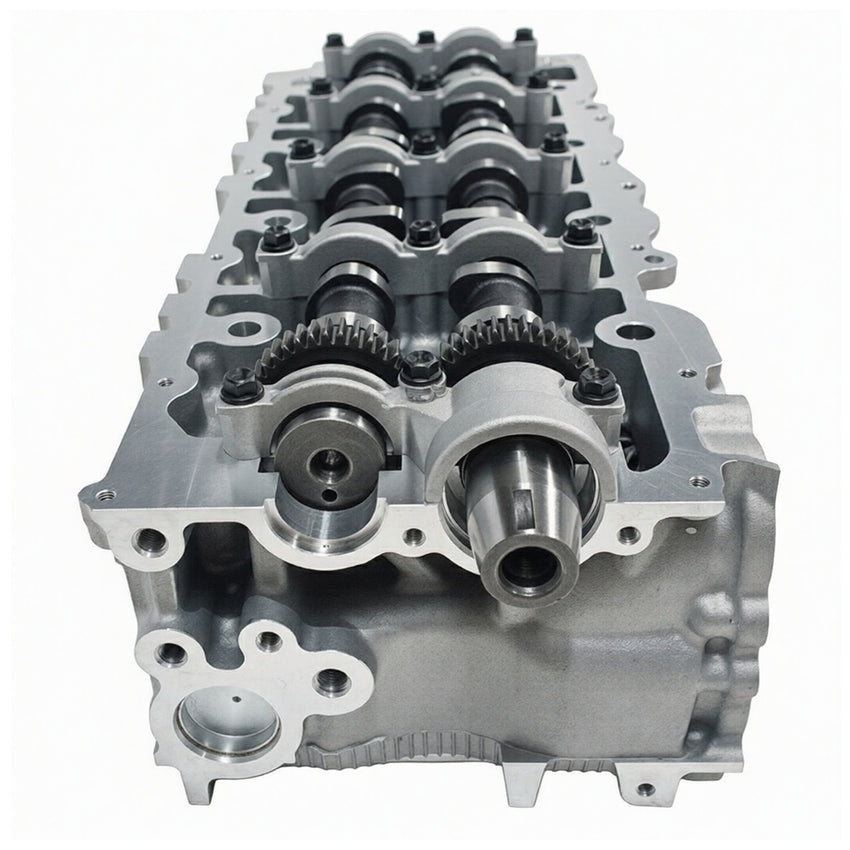

Complete cylinder head assembly for Toyota Hiace, Hilux, and Prado with 1KD-FTV 3.0L turbo diesel engines. Ready to install with valves, springs, and camshaft already fitted. Includes complete gasket set with MLS head gasket and high-tensile stretch bolts. One cylinder head per vehicle.
Fitment
Toyota: Hiace, Hilux, Prado (3.0L 1KD-FTV turbo diesel, 2000-2015)
Engine codes: 1KD-FTV (3.0L turbo diesel)
What's Included
- Assembled cylinder head with valves, springs, guides, and seals fitted
- Camshaft fitted with shim tappets
- Multi-layer steel (MLS) cylinder head gasket (thickest specification for universal compatibility)

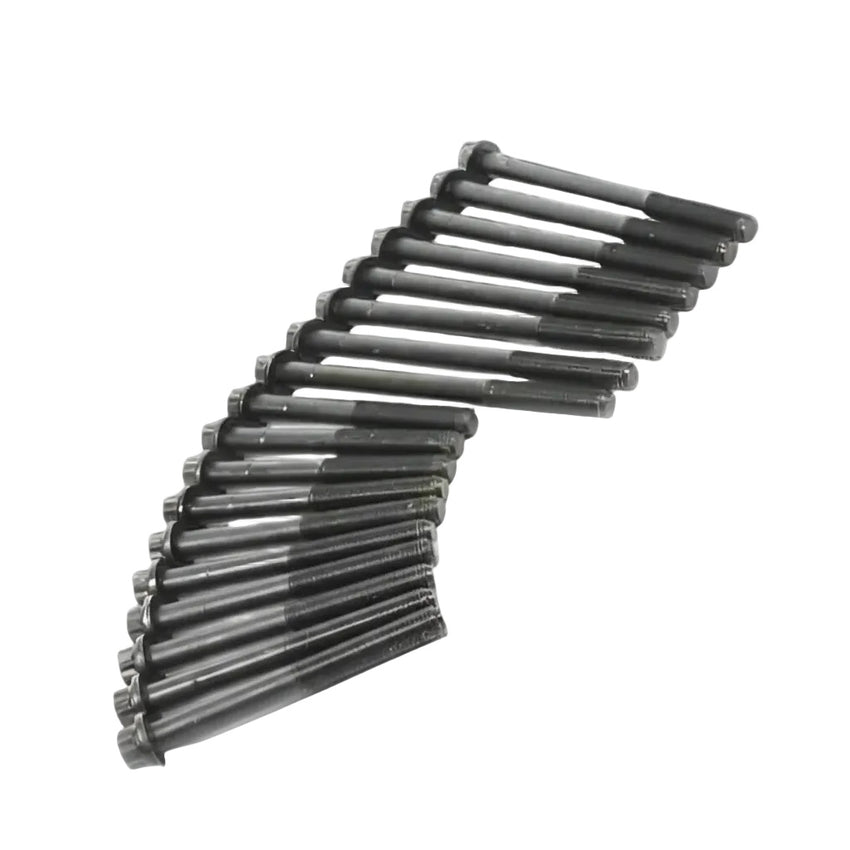

- High-tensile stretch bolts (torque-to-yield, single-use)

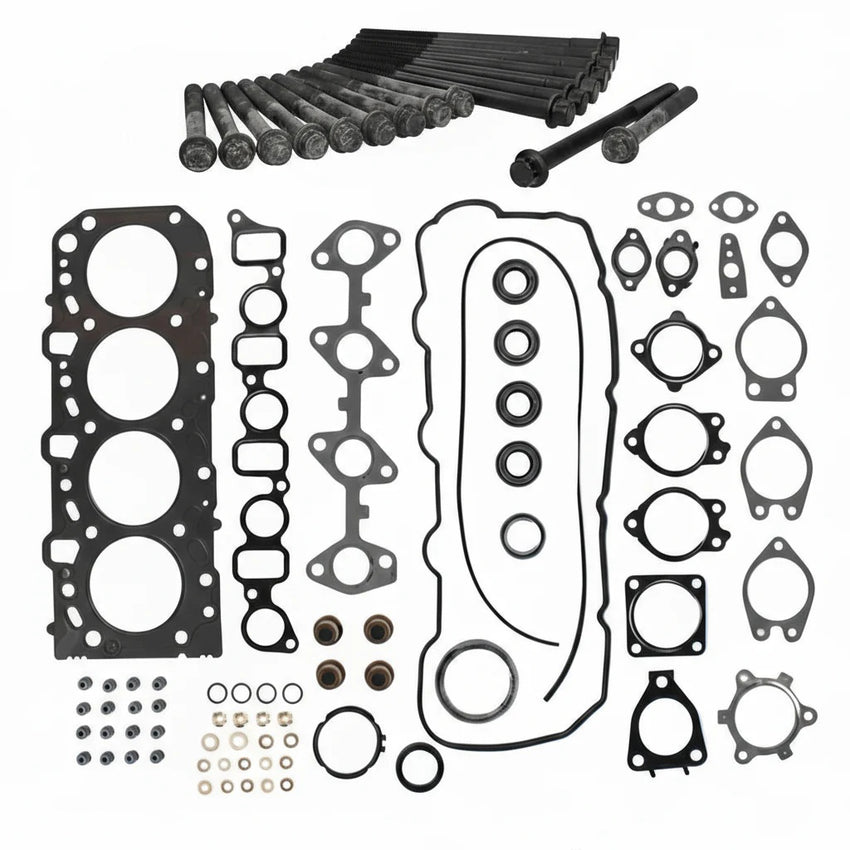

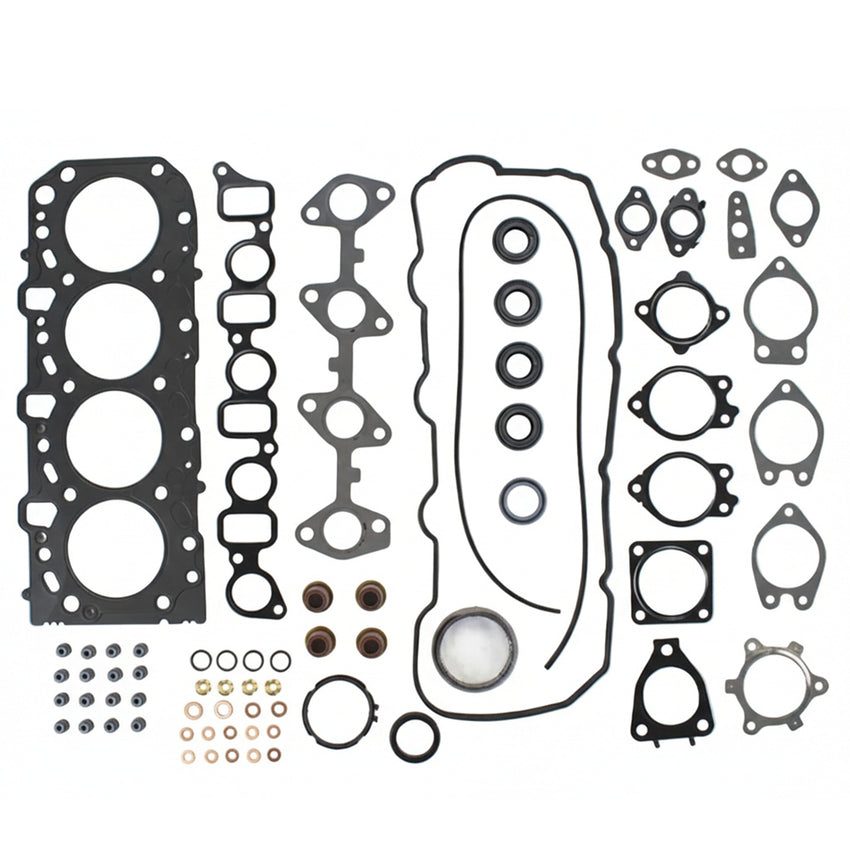

- Complete head gasket set with all seals and O-rings
- Head bolt torque, tension, and sequence specifications included
- Pressure-tested and ready to install
Installation Notes
- Important: The Camshaft must be removed before fitting the cylinder head to the engine block.
- Critical: Keep the cylinder head level after camshaft removal - do not tip the head as the shim tappets cannot be mixed.
- Install the cylinder head to the block following the factory torque sequence using the new head bolts included.
- Reinstall the camshaft after head installation
Specifications
- Engine: 3.0L 1KD-FTV turbo diesel
- Valve configuration: 16-valve DOHC
- Tappet type: Shim tappets
- Material: Aluminium with precision-machined surfaces
- Head gasket material: Multi-layer steel (MLS) - thickest specification
- Bolt type: Torque-to-yield (TTY) stretch bolts, single-use
Shipping
Ships Australia-wide. In-stock items ship the same or next business day. Local Perth metro stock available for fast dispatch.
